I. Upper arm｜II. Lower arm｜III. Mount base
IV. Display bracket｜V. C-clamp
A. Reinforcement plates and cushion mat｜B. 6 mm Allen key｜C. Screw for clamp x 1 (M8 x 75)
D. Screw for grommet x 1 (M8 x 150)｜E. Clamp plate｜F. Retainer (rotation stopper)
G. 4 mm Allen key｜H. Hinge washer x 2｜I. Hinge screw
J. Hinge joint｜K. Screw x 4 (M4 x 12)｜L. Washer x 4 (D5)
M. Cable clip｜N. Spare parts
Note
The images shown here may differ from the actual contents and the product supplied for your region.
Product overview
Content
1. Mounting options
2. Desk protection (recommended)
3-A. Installing mount base - Clamp
3-B. Installing mount base - Grommet
4. Installing lower arm
5. Installing display braket and upper arm
6. Installing a monitor
7. Cable management (optional)
Tension adjustments
1. Mounting options

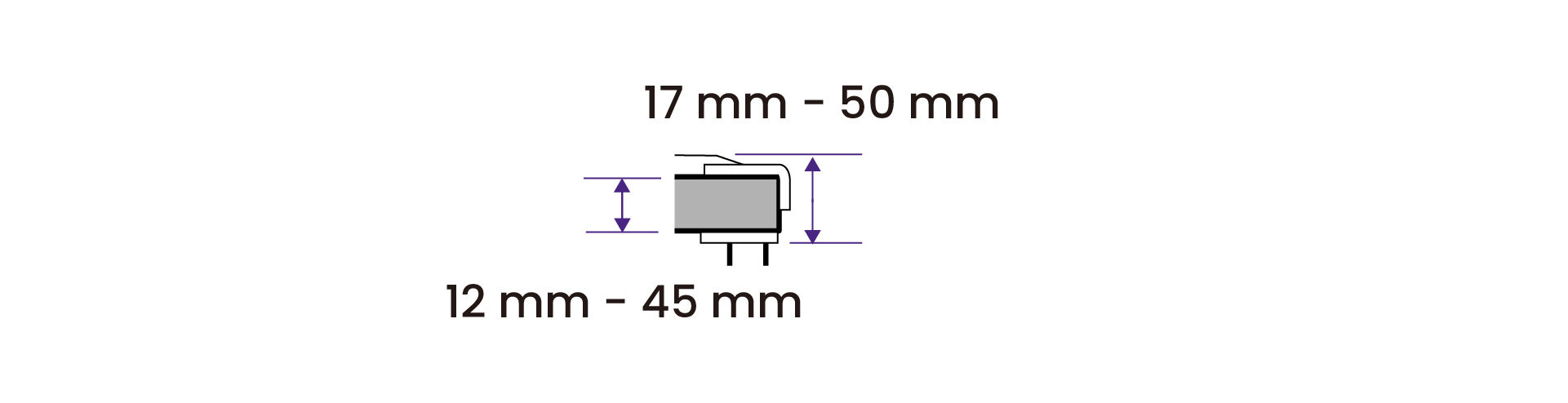

A. Clamp
B. Grommet

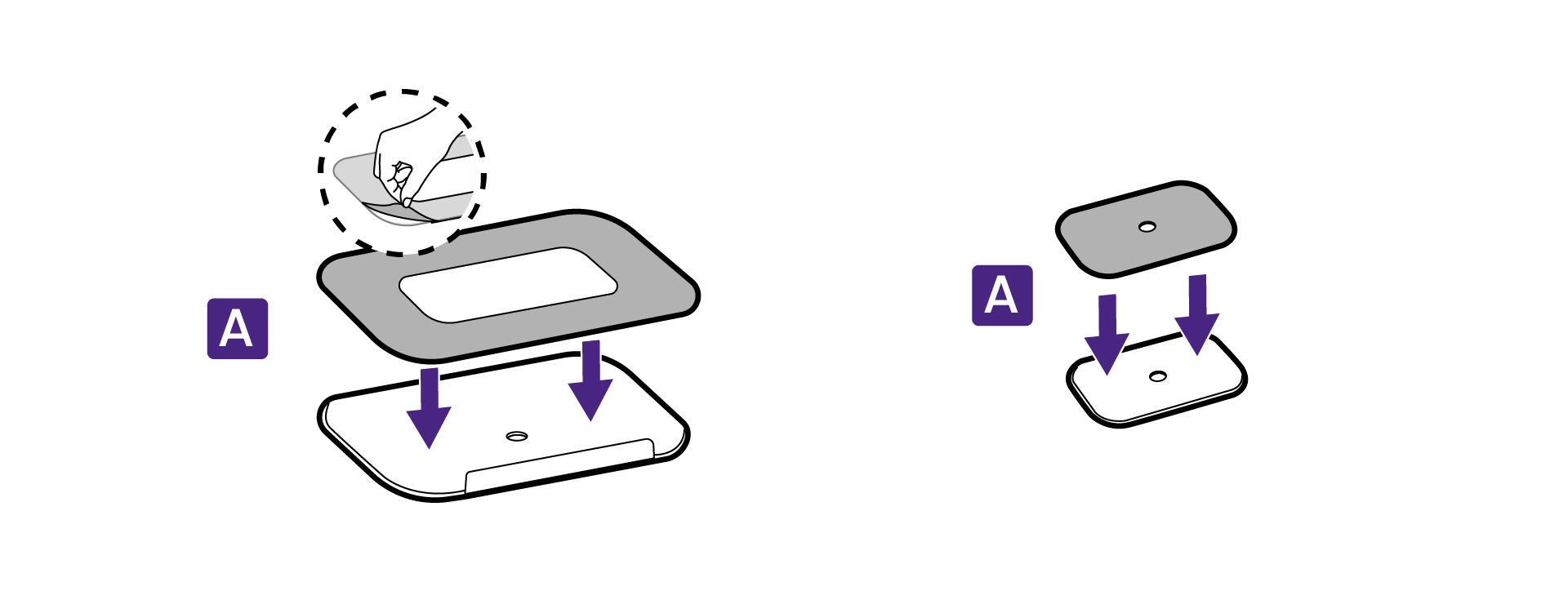

2. Desk protection (recommended)
Required for glass or fragile tabletops.
Use reinforcement plates to protect tabletops and enhance stability.
3-A. Installing mount base - Clamp
1.
2.
Tighten the screw halfway.
3.
4.
Hold the parts carefully and keep them from falling.
5.
6.
Tighten the screw.
3-B. Installing mount base - Grommet
1.
Align the holes properly.
2.
3.
Tighten the screw.
4. Installing lower arm
1.
2.
3.
Do not overtighten the screw.
5. Installing display braket and upper arm
1.
2.
Align the holes properly.
3.
4.
5.
6.
Do not overtighten the screw.
6. Installing a monitor
1.
2.
Fix the screws and washers by a cross-pointed screwdriver (not included in the package).
3.
7. Cable management (optional)
1.
2.
3.
Tension adjustments
Try to lift, lower, or tilt the monitor. If it does not stay at the preferred height/angle, make adjustment as illustrated.
