All Specifications
| Panel | |||
|---|---|---|---|
|
Screen size
65''
|
Screen size
75''
|
Screen size
86''
|
|
|
Panel type
IPS
|
Panel type
IPS
|
Panel type
IPS
|
|
|
Active area
1428.5 × 803.5 mm
|
Active area
1649.7 × 927.9 mm
|
Active area
1895.0 × 1066.0 mm
|
|
|
Aspect ratio
16:9
|
Aspect ratio
16:9
|
Aspect ratio
16:9
|
|
|
Resolution
UHD 3840 × 2160 pixels
|
Resolution
UHD 3840 × 2160 pixels
|
Resolution
UHD 3840 × 2160 pixels
|
|
|
Response time
8 ms
|
Response time
8 ms
|
Response time
8 ms
|
|
|
Color depth
10-bit
|
Color depth
10-bit
|
Color depth
10-bit
|
|
|
Orientation
Landscape
|
Orientation
Landscape
|
Orientation
Landscape
|
|
|
Operation hours
18 hours / 7 days
|
Operation hours
18 hours / 7 days
|
Operation hours
18 hours / 7 days
|
|
|
Panel brightness (typical)
450 nits
|
Panel brightness (typical)
450 nits
|
Panel brightness (typical)
450 nits
|
|
|
Contrast ratio (typical)
1200:1
|
Contrast ratio (typical)
1200:1
|
Contrast ratio (typical)
1200:1
|
|
|
Dynamic contrast ratio
50,000:1
|
Dynamic contrast ratio
50,000:1
|
Dynamic contrast ratio
50,000:1
|
|
|
Color gamut
72% NTSC
|
Color gamut
72% NTSC
|
Color gamut
72% NTSC
|
|
|
Light life (typical)
50,000 hrs
|
Light life (typical)
50,000 hrs
|
Light life (typical)
50,000 hrs
|
|
| Glass | |||
|
Germ-resistant coating
Nano-ionic silver
|
Germ-resistant coating
Nano-ionic silver
|
Germ-resistant coating
Nano-ionic silver
|
|
|
Anti-glare coating
Yes
|
Anti-glare coating
Yes
|
Anti-glare coating
Yes
|
|
|
Hardness
9H tempered
|
Hardness
9H tempered
|
Hardness
9H tempered
|
|
| Touch screen | |||
|
Touch technology
Ultra Precision IR
|
Touch technology
Ultra Precision IR
|
Touch technology
Ultra Precision IR
|
|
|
Touch points
up to 50
|
Touch points
up to 50
|
Touch points
up to 50
|
|
|
Response time
< 2.5 ms
|
Response time
< 2.5 ms
|
Response time
< 2.5 ms
|
|
| System | |||
|
Memory | Storage
8GB | 128GB
|
Memory | Storage
8GB | 128GB
|
Memory | Storage
8GB | 128GB
|
|
|
OS
Android 15.0
|
OS
Android 15.0
|
OS
Android 15.0
|
|
|
GPU
Arm Mali-G57 MC5
|
GPU
Arm Mali-G57 MC5
|
GPU
Arm Mali-G57 MC5
|
|
|
CPU
Arm Cortex-A78 × 4 + A55 × 4
|
CPU
Arm Cortex-A78 × 4 + A55 × 4
|
CPU
Arm Cortex-A78 × 4 + A55 × 4
|
|
| Connectivity | |||
|
Video Graphics Array (VGA)
1
|
Video Graphics Array (VGA)
1
|
Video Graphics Array (VGA)
1
|
|
|
HDMI (in | out)
4 × HDMI 2.0 | 1 × HDMI 2.0
|
HDMI (in | out)
4 × HDMI 2.0 | 1 × HDMI 2.0
|
HDMI (in | out)
4 × HDMI 2.0 | 1 × HDMI 2.0
|
|
|
Display Port
1 × 1.2a
|
Display Port
1 × 1.2a
|
Display Port
1 × 1.2a
|
|
|
USB-A
7 × 3.0, 1 × 2.0
|
USB-A
7 × 3.0, 1 × 2.0
|
USB-A
7 × 3.0, 1 × 2.0
|
|
|
USB-C
1 × 3.0 (PD 100 W), 2 × 3.0, 1 × 2.0 (PD 65 W)
|
USB-C
1 × 3.0 (PD 100 W), 2 × 3.0, 1 × 2.0 (PD 65 W)
|
USB-C
1 × 3.0 (PD 100 W), 2 × 3.0, 1 × 2.0 (PD 65 W)
|
|
|
USB-B (for touch)
3 × 3.0
|
USB-B (for touch)
3 × 3.0
|
USB-B (for touch)
3 × 3.0
|
|
|
3.5 mm Line in (1)
Mic × 1
|
3.5 mm Line in (1)
Mic × 1
|
3.5 mm Line in (1)
Mic × 1
|
|
|
3.5 mm Line out
Earphone × 1
|
3.5 mm Line out
Earphone × 1
|
3.5 mm Line out
Earphone × 1
|
|
|
Slot-in PC (OPS)
1
|
Slot-in PC (OPS)
1
|
Slot-in PC (OPS)
1
|
|
|
Micro SD reader
N/A
|
Micro SD reader
N/A
|
Micro SD reader
N/A
|
|
|
Wi-Fi
Wi-Fi 6
|
Wi-Fi
Wi-Fi 6
|
Wi-Fi
Wi-Fi 6
|
|
|
Bluetooth®
Bluetooth 5.2
|
Bluetooth®
Bluetooth 5.2
|
Bluetooth®
Bluetooth 5.2
|
|
|
SPDIF (in | out)
1 (optical)
|
SPDIF (in | out)
1 (optical)
|
SPDIF (in | out)
1 (optical)
|
|
|
Ethernet LAN
2
|
Ethernet LAN
2
|
Ethernet LAN
2
|
|
|
3.5 mm Line in (2)
PC Audio × 1
|
3.5 mm Line in (2)
PC Audio × 1
|
3.5 mm Line in (2)
PC Audio × 1
|
|
|
RS-232
1
|
RS-232
1
|
RS-232
1
|
|
| Built-in peripherals | |||
|
NFC sensor
Yes
|
NFC sensor
Yes
|
NFC sensor
Yes
|
|
|
Ambient light sensor
Yes
|
Ambient light sensor
Yes
|
Ambient light sensor
Yes
|
|
|
IR sensor
Yes
|
IR sensor
Yes
|
IR sensor
Yes
|
|
|
Motion sensor
Yes
|
Motion sensor
Yes
|
Motion sensor
Yes
|
|
|
Microphone
8-microphone array (range: up to 8 m | 26ft)
|
Microphone
8-microphone array (range: up to 8 m | 26ft)
|
Microphone
8-microphone array (range: up to 8 m | 26ft)
|
|
|
Speaker
2 × 20 W (max)
|
Speaker
2 × 20 W (max)
|
Speaker
2 × 20 W (max)
|
|
|
Camera
N/A
|
Camera
N/A
|
Camera
N/A
|
|
|
Air sensor
CO₂, PM₂.₅, PM₁₀, TVOC, CH₂O, temperature, humidity
|
Air sensor
CO₂, PM₂.₅, PM₁₀, TVOC, CH₂O, temperature, humidity
|
Air sensor
CO₂, PM₂.₅, PM₁₀, TVOC, CH₂O, temperature, humidity
|
|
|
Subwoofer
1 × 16 W
|
Subwoofer
1 × 16 W
|
Subwoofer
1 × 16 W
|
|
|
Air Ionizer
Yes
|
Air Ionizer
Yes
|
Air Ionizer
Yes
|
|
| Power | |||
|
ENERGY STAR®
Yes
|
ENERGY STAR®
Yes
|
ENERGY STAR®
Yes
|
|
|
Power
AC 100-240V 50/60Hz
|
Power
AC 100-240V 50/60Hz
|
Power
AC 100-240V 50/60Hz
|
|
|
Standby power consumption
<0.5 W
|
Standby power consumption
<0.5 W
|
Standby power consumption
<0.5 W
|
|
|
Typical power consumption
95.0 W
|
Typical power consumption
109.3 W
|
Typical power consumption
164.4 W
|
|
| Physical | |||
|

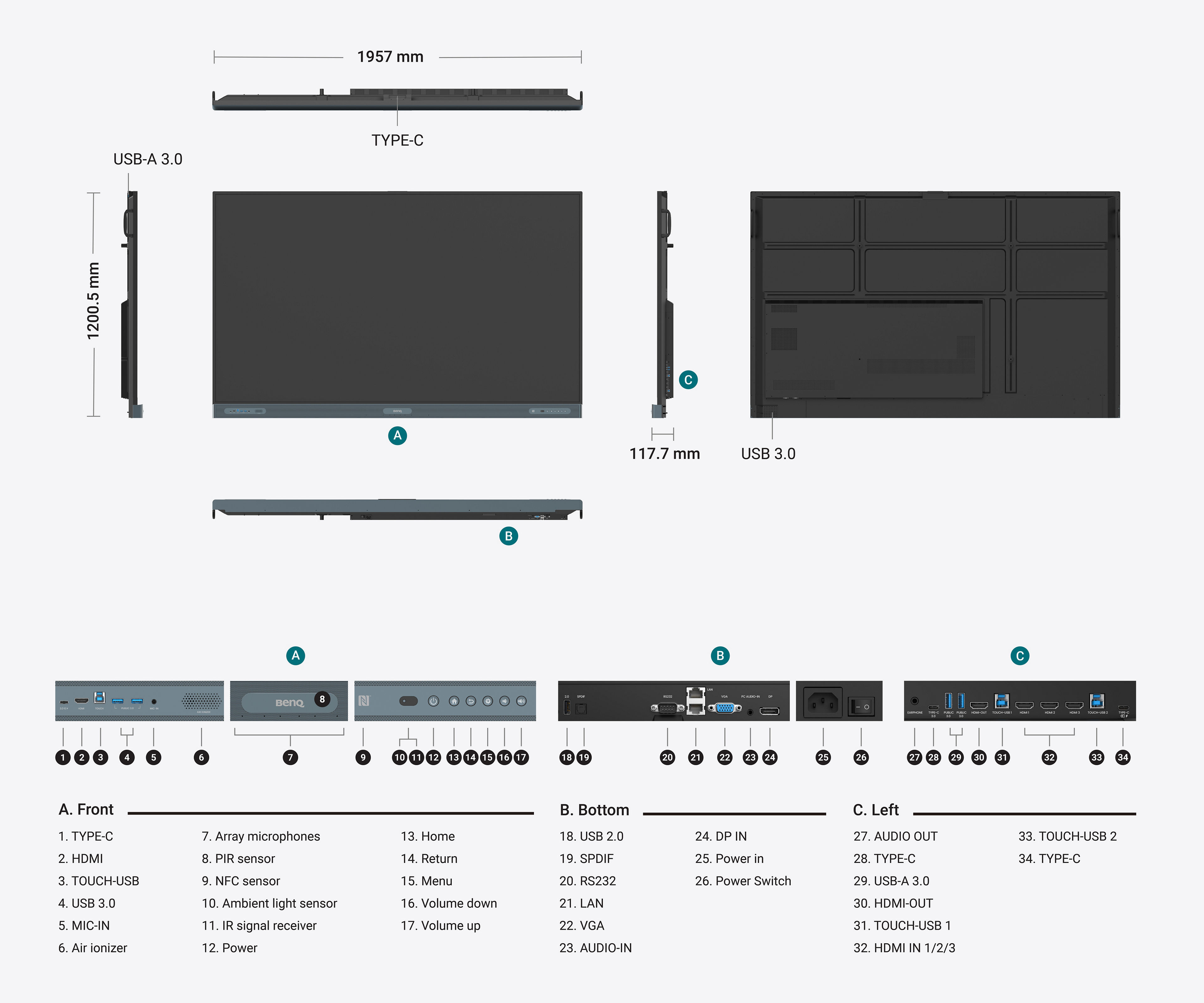

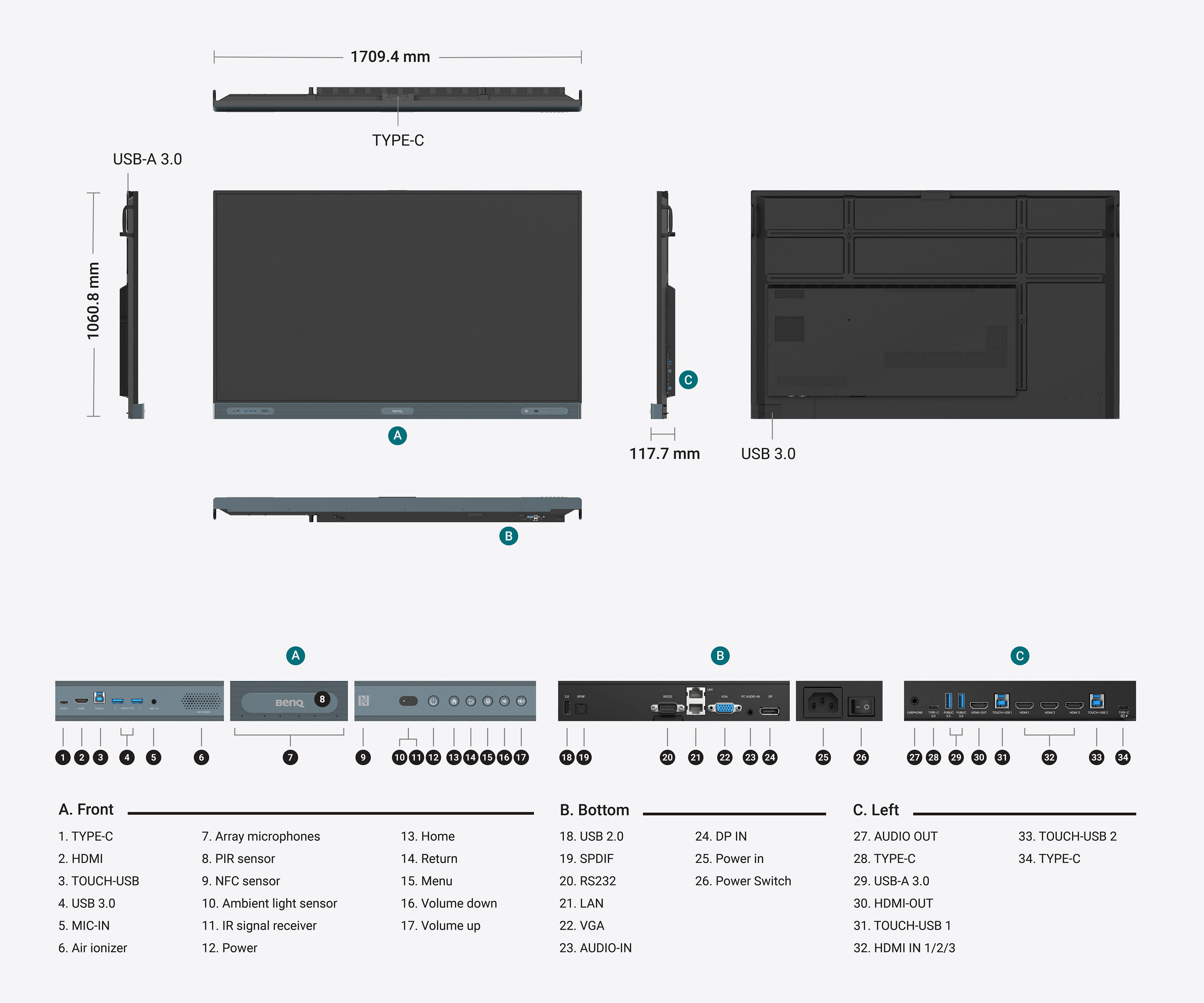

Dimensions (W x H x D)
1488.4 × 937.6 × 117.7 mm (58.6 × 36.9 × 4.6 inch)
|
Dimensions (W x H x D)
1709.4 × 1060.8 × 117.7 mm (67.3 × 41.8 × 4.6 inch)
|
Dimensions (W x H x D)
1957.0 × 1200.5 × 117.7 mm (77.0 × 47.3 × 4.6 inch)
|
|
|
Shipping dimensions (W x H x D)
1628 × 1024 × 208 mm (64.1 × 40.3 × 8.2 inch)
|
Shipping dimensions (W x H x D)
1863 × 1155 × 205 mm (73.3 × 45.5 × 8.1 inch)
|
Shipping dimensions (W x H x D)
2110 × 1291 × 205 mm (83.0 × 50.8 × 8.1 inch)
|
|
|
Weight (product I shipping)
40.6 kg | 47.8 kg (89.5 lbs | 105.4 lbs)
|
Weight (product I shipping)
52.2 kg | 64.5 kg (115.1 lbs | 142.2 lbs)
|
Weight (product I shipping)
64.7 kg | 79.6 kg (142.6 lbs | 175.5 lbs)
|
|
|
Mount (screws)
VESA 600 × 400 mm (4 × M8 × 25L)
|
Mount (screws)
VESA 800 × 400 mm (4 × M8 × 25L)
|
Mount (screws)
VESA 800 × 600 mm (4 × M8 × 25L)
|
|
|
Pen Tray
Yes
|
Pen Tray
Yes
|
Pen Tray
Yes
|
|
| Environment | |||
|
Operating temperature
0°C ~ 40°C | 32°F ~ 104°F
|
Operating temperature
0°C ~ 40°C | 32°F ~ 104°F
|
Operating temperature
0°C ~ 40°C | 32°F ~ 104°F
|
|
|
Storage temperature
-20°C ~ 60°C | -4°F ~ 140°F
|
Storage temperature
-20°C ~ 60°C | -4°F ~ 140°F
|
Storage temperature
-20°C ~ 60°C | -4°F ~ 140°F
|
|
|
Storage humidity
10% ~ 90% RH non-condensing
|
Storage humidity
10% ~ 90% RH non-condensing
|
Storage humidity
10% ~ 90% RH non-condensing
|
|
|
Operating humidity
10% ~ 90% RH non-condensing
|
Operating humidity
10% ~ 90% RH non-condensing
|
Operating humidity
10% ~ 90% RH non-condensing
|
|
| Software | |||
|
Whiteboarding
EZWrite 6.0
|
Whiteboarding
EZWrite 6.0
|
Whiteboarding
EZWrite 6.0
|
|
|
Wireless screen sharing
InstaShare 2
|
Wireless screen sharing
InstaShare 2
|
Wireless screen sharing
InstaShare 2
|
|
|
Device management
DMS
|
Device management
DMS
|
Device management
DMS
|
|
|
Account management
AMS
|
Account management
AMS
|
Account management
AMS
|
|
|
Quick access tool
Floating Tool
|
Quick access tool
Floating Tool
|
Quick access tool
Floating Tool
|
|
|
Broadcast system
X-Sign Broadcast
|
Broadcast system
X-Sign Broadcast
|
Broadcast system
X-Sign Broadcast
|
|
|
Flicker Free
Yes
|
Flicker Free
Yes
|
Flicker Free
Yes
|
|
|
Low Blue Light
Yes
|
Low Blue Light
Yes
|
Low Blue Light
Yes
|
|
| Accessories | |||
|
Cables
1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
|
Cables
1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
|
Cables
1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
|
|
|
Wall Mount (with shipment)
1
|
Wall Mount (with shipment)
1
|
Wall Mount (with shipment)
1
|
|
|
Stylus
2
|
Stylus
2
|
Stylus
2
|
|
|
Remote control
1
|
Remote control
1
|
Remote control
1
|
