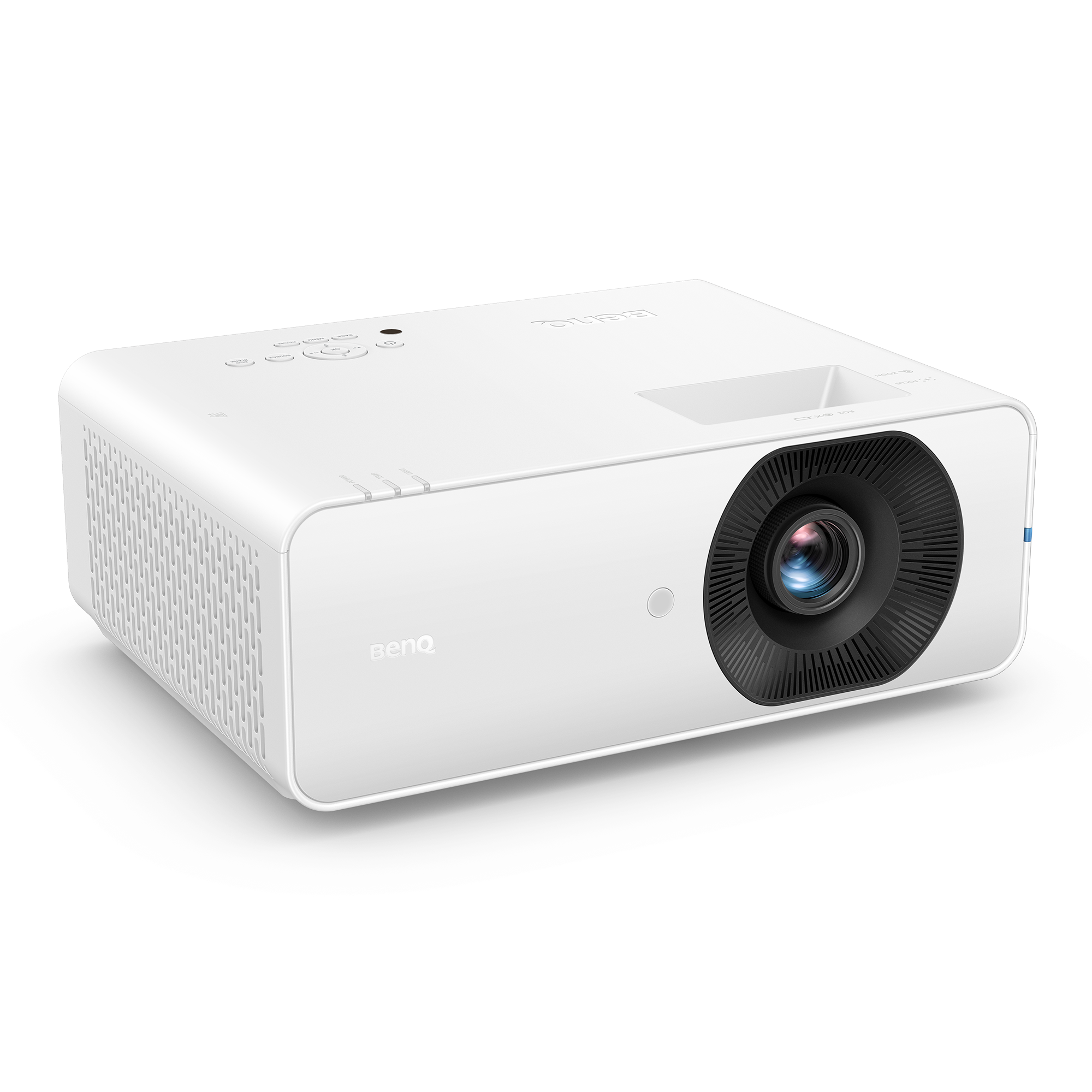

LH660 4600AL 1080P Laser Meeting Room Projector
- RJ45 built-in enables seamless centralized network control
- 1.3x zoom delivers flexible projection across varied distances
- Optional QP30 enables easy wireless BYOD sharing
LH660 4600AL 1080P Laser Meeting Room Projector
- RJ45 built-in enables seamless centralized network control
- 1.3x zoom delivers flexible projection across varied distances
- Optional QP30 enables easy wireless BYOD sharing
The requested qty is not available
The requested qty exceeds the maximum qty allowed in shopping cart
Product that you are trying to add is not available.
All Specifications
Display
Brightness (ANSI lumens)
4600
Resolution
1080P (1920x1080)
Native Aspect Ratio
16:9
Contrast Ratio (FOFO)
3,000,000:1
Display Color
30-bit (1.07 billion colors)
Light Source
Laser
Light Source Life
a. Normal 20000 hrs, b. ECO 30000 hrs
Throw Ratio
1.15~1.5
Zoom Ratio
1.3x
Lens
F = 2.59 ~ 2.87
f = 16.88~21.88 mm
Projection Offset (Full-Height)
105.75%
Keystone Adjustment
2D, (Auto) Vertical ± 40 degrees; Horizontal ± 40 degrees
Rec. 709 Coverage
93%
Picture Modes
DICOM Simulation, High Detail, 3D, Bright, Presentation, User, Video Conference, Vivid
Input Lag
16.7 ms (1080P 60Hz)
Resolution Support
VGA (640 x 480) to 4K UHD (3840 x 2160)
Horizontal Frequency
15K~155KHz
Vertical Scan Rate
23~120Hz
HDMI in
(x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
LAN (RJ45)
(x1)
USB Type A
USB Type A-1 (2.0/Power Supply 1.5A/FW Upgrade), USB Type A-2 (2.0/Power Supply 1.5A/Wireless Dongle), (x2)
RS232 in (DB-9pin)
(x1)
Speaker
15W
Audio in (3.5mm Mini Jack)
(x1)
Operating Temperature
0~40℃
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
310W
Stand-by Power Consumption
<0.5W
Network Stand-by Power Consumption
<2W
Acoustic Noise (Typ./Eco.)(dB)
34/29
Wireless USB dongle
EZC-5201BS (Wi-Fi/BT), (Optional)
Remote Control w/ Battery
RCA011
Power Cord (by region)
x1 (1.8M)
Quick Start Guide
(x1) 21L
Warranty Card (by region)
Yes
Battery
Yes, 8000 mAh Li-ion Battery
Universal Ceiling Mount
CM00G3, (Optional)
Dimensions (WxHxD) (mm)
343.8 x 136 x 256
Net Weight (kg)
4.5 Kg +/- 100g
Projection System
DLP
