This chapter provides basic information about the BenQ Board RE05A interactive display.
About the RE05A
The BenQ Board Essential RE05A is a Google ELDA-certified interactive display by BenQ. It combines the computing power of an 8-core Arm Cortex chipset, High Precision IR touch, top-of-the line hardware and software, a full set of ClassroomCare® technologies, and Google Mobile Services. Users of the BenQ Board can utilize the interactive display for effective and engaging learning experiences and workplace collaboration.
Specifications
Important
Modifying the hardware or software of your BenQ product invalidates the warranty. BenQ is not responsible for any damage or data loss caused by the unauthorized modifications to both and hardware and software and the installation of third-party add-ons and applications.
Panel
Model
RE6505A
RE7505A
RE8605A
Screen size
65”
75”
86”
Panel type
VA
VA
VA
Resolution
UHD 3840 × 2160 pixels
UHD 3840 × 2160 pixels
UHD 3840 × 2160 pixels
Active area
1428.5 x 803.5 mm
1650.2 × 928.2 mm
1895.0 × 1066.0 mm
Response time
6.5 ms
6.5 ms
6.5 ms
Aspect ratio
16:9
16:9
16:9
Orientation
Landscape
Landscape
Landscape
Contrast ratio
5,500:1
5,500:1
5,500:1
Dynamic contrast ratio
50,000:1
50,000:1
50,000:1
Color depth
10-bit
10-bit
10-bit
Color gamut
72% NTSC
72% NTSC
72% NTSC
Panel brightness
450 nits
450 nits
450 nits
Backlight life
50,000 hrs
50,000 hrs
50,000 hrs
Glass
Model
RE6505A
RE7505A
RE8605A
Hardness
9H tempered
9H tempered
9H tempered
Germ-resistant screen*
Nano-ionic silver
Nano-ionic silver
Nano-ionic silver
Anti-glare
Yes
Yes
Yes
Touchscreen
Model
RE6505A
RE7505A
RE8605A
Touch technology
High Precision IR
High Precision IR
High Precision IR
Touch points
Up to 50
Up to 50
Up to 50
Touch response time
< 5 ms
< 5 ms
< 5 ms
System
Model
RE6505A
RE7505A
RE8605A
CPU
Arm Cortex-A72 x 4 + A53 x 4
Arm Cortex-A72 x 4 + A53 x 4
Arm Cortex-A72 x 4 + A53 x 4
GPU
Arm Mali-G52 MC3
Arm Mali-G52 MC3
Arm Mali-G52 MC3
Memory
8 GB
8 GB
8 GB
Storage
128 GB
128 GB
128 GB
Operating system
Android 16
Android 16
Android 16
Connectivity
Model
RE6505A
RE7505A
RE8605A
USB-C (in | out)
1 × 3.0
1 × 3.0
1 × 3.0
USB Type-B (for touch)
2 × 2.0
2 × 2.0
2 × 2.0
USB Type-A
3 x 3.0, 1 x 2.0
3 x 3.0, 1 x 2.0
3 x 3.0, 1 x 2.0
HDMI (in | out)
3 × HDMI 2.0 | 1 × HDMI 2.0
3 × HDMI 2.0 | 1 × HDMI 2.0
3 × HDMI 2.0 | 1 × HDMI 2.0
DisplayPort
1 × 1.2a
1 × 1.2a
1 × 1.2a
Audio in
1 × 3.5 mm microphone jack
1 × 3.5 mm microphone jack
1 × 3.5 mm microphone jack
Audio out
1 × 3.5 mm audio out jack
1 × 3.5 mm audio out jack
1 × 3.5 mm audio out jack
S/PDIF out
1
1
1
RS-232
1
1
1
OPS slot (for slot-in PC)
1
1
1
Ethernet
10/100/1000 Mbps
10/100/1000 Mbps
10/100/1000 Mbps
Wi-Fi
Optional
Optional
Optional
Bluetooth®
Optional
Optional
Optional
Built-in peripherals
Model
RE6505A
RE7505A
RE8605A
Ambient light sensor
1
1
1
IR sensor
1
1
1
Speaker
2 × 25 W (max)
2 × 25 W (max)
2 × 25 W (max)
Power
Model
RE6505A
RE7505A
RE8605A
ENERGY STAR®
Yes
Yes
Yes
Power
AC 100-240V 50/60Hz
AC 100-240V 50/60Hz
AC 100-240V 50/60Hz
Standby power consumption
< 0.5 W
< 0.5 W
< 0.5 W
Typical power consumption
65.9 W
71.9 W
100.2 W
Physical
Model
RE6505A
RE7505A
RE8605A
Dimensions
1491 × 898.5 × 97.9mm
(58.7 × 35.4 × 3.9 in)
1712 × 1022 × 98.4mm
(67.4 × 40.2 × 3.9 in)
1957 × 1159.9 × 97.1mm
(77.0 × 45.7 × 3.8 in)
Shipping dimensions
1628 × 1014 × 185 mm
(64.1 × 39.9 × 7.3 in)
1863 × 1140 × 185 mm
(73.3 × 44.9 × 7.3 in)
2110 × 1291 × 185 mm
(83.1 × 50.8 × 7.3 in)
Weight
30.0 kg | 37.6 kg
(66.1 lbs | 82.9 lbs )
40.4 kg | 51.6 kg
(89.1 lbs | 113.8 lbs)
49.5 kg | 63.0 kg
(109.1 lbs | 138.9 lbs)
Mount
VESA 600 × 400 mm
(4 × M8 × 25L)
VESA 800 × 400 mm
(4 × M8 × 25L)
VESA 800 × 600 mm
(4 × M8 × 25L)
Environment
Model
RE6505A
RE7505A
RE8605A
Operating temperature
0°C~40°C | 32°F~104°F
0°C~40°C | 32°F~104°F
0°C~40°C | 32°F~104°F
Storage temperature
-10°C ~ 60°C | 14°F ~ 140°F
-10°C ~ 60°C | 14°F ~ 140°F
-10°C ~ 60°C | 14°F ~ 140°F
Storage humidity
10% ~ 80% RH non-condensing
10% ~ 80% RH non-condensing
10% ~ 80% RH non-condensing
Operating humidity
20% ~ 80% RH non-condensing
20% ~ 80% RH non-condensing
20% ~ 80% RH non-condensing
Software
Model
RE6505A
RE7505A
RE8605A
Whiteboarding
EZWrite 6
EZWrite 6
EZWrite 6
Wireless screen sharing
InstaShare 2
InstaShare 2
InstaShare 2
Account management
AMS
AMS
AMS
Device management
DMS
DMS
DMS
Quick access tool
Floating Tool
Floating Tool
Floating Tool
Broadcast system
X-Sign Broadcast
X-Sign Broadcast
X-Sign Broadcast
Accessories
Model
RE6505A
RE7505A
RE8605A
Cables
- 1 × HDMI (3 m | 9.8ft)
- 1 × Touch-USB (3 m | 9.8ft)
- 1 × HDMI (3 m | 9.8ft)
- 1 × Touch-USB (3 m | 9.8ft)
- 1 × HDMI (3 m | 9.8ft)
- 1 × Touch-USB (3 m | 9.8ft)
Wall mount
1
1
1
Pen
2
2
Remote control
1
1
1
Note
Specifications and features are subject to change without notice.

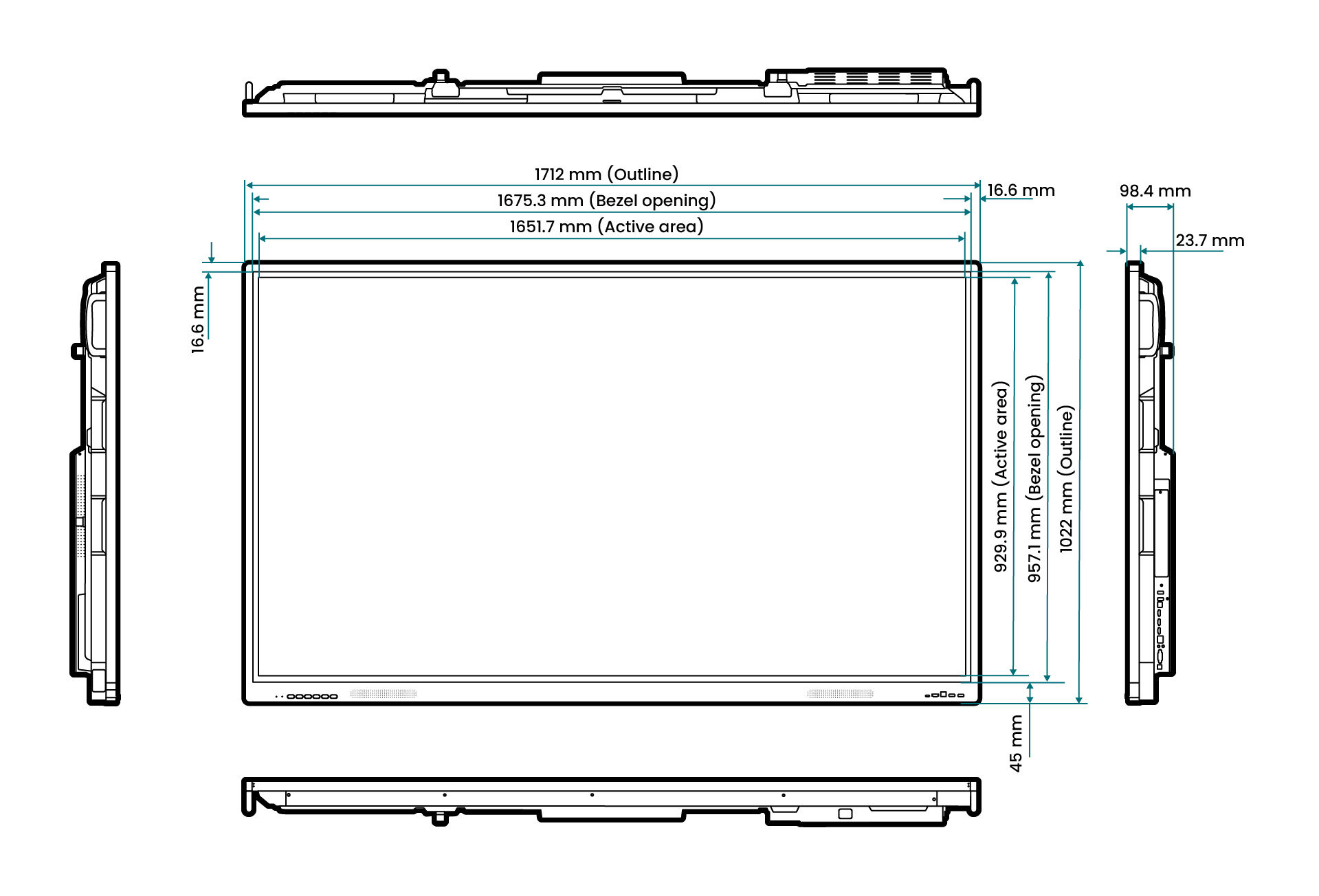

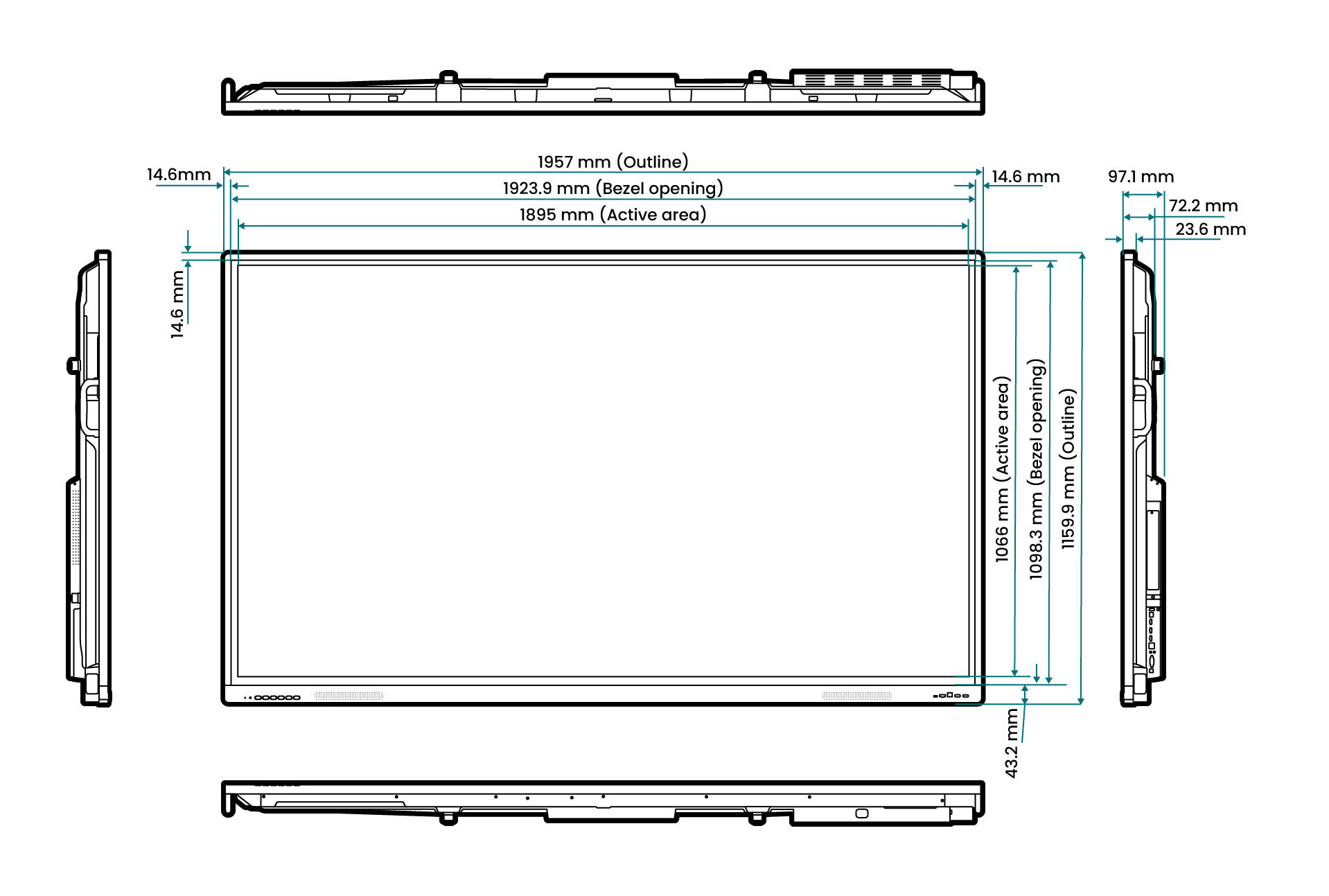

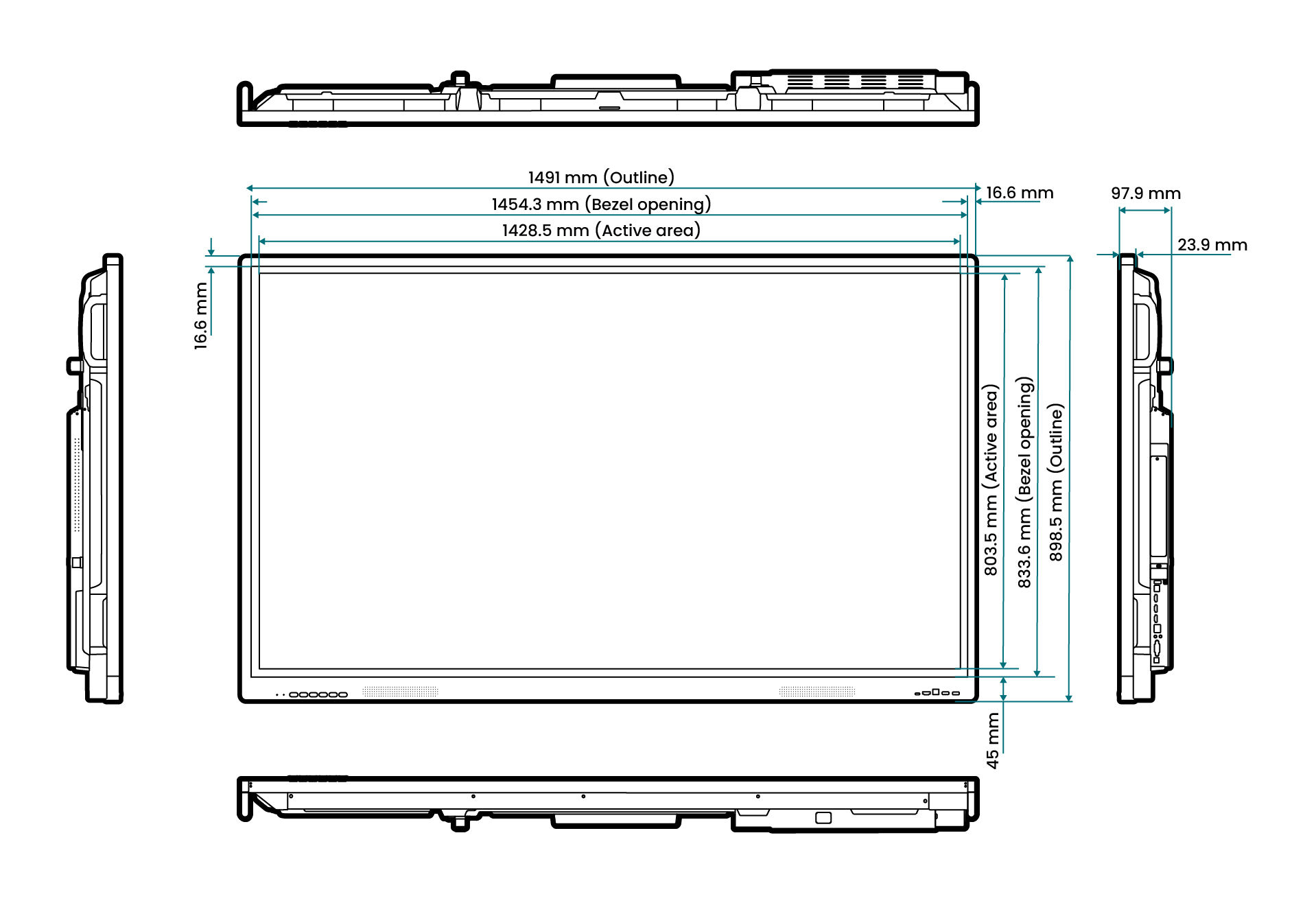

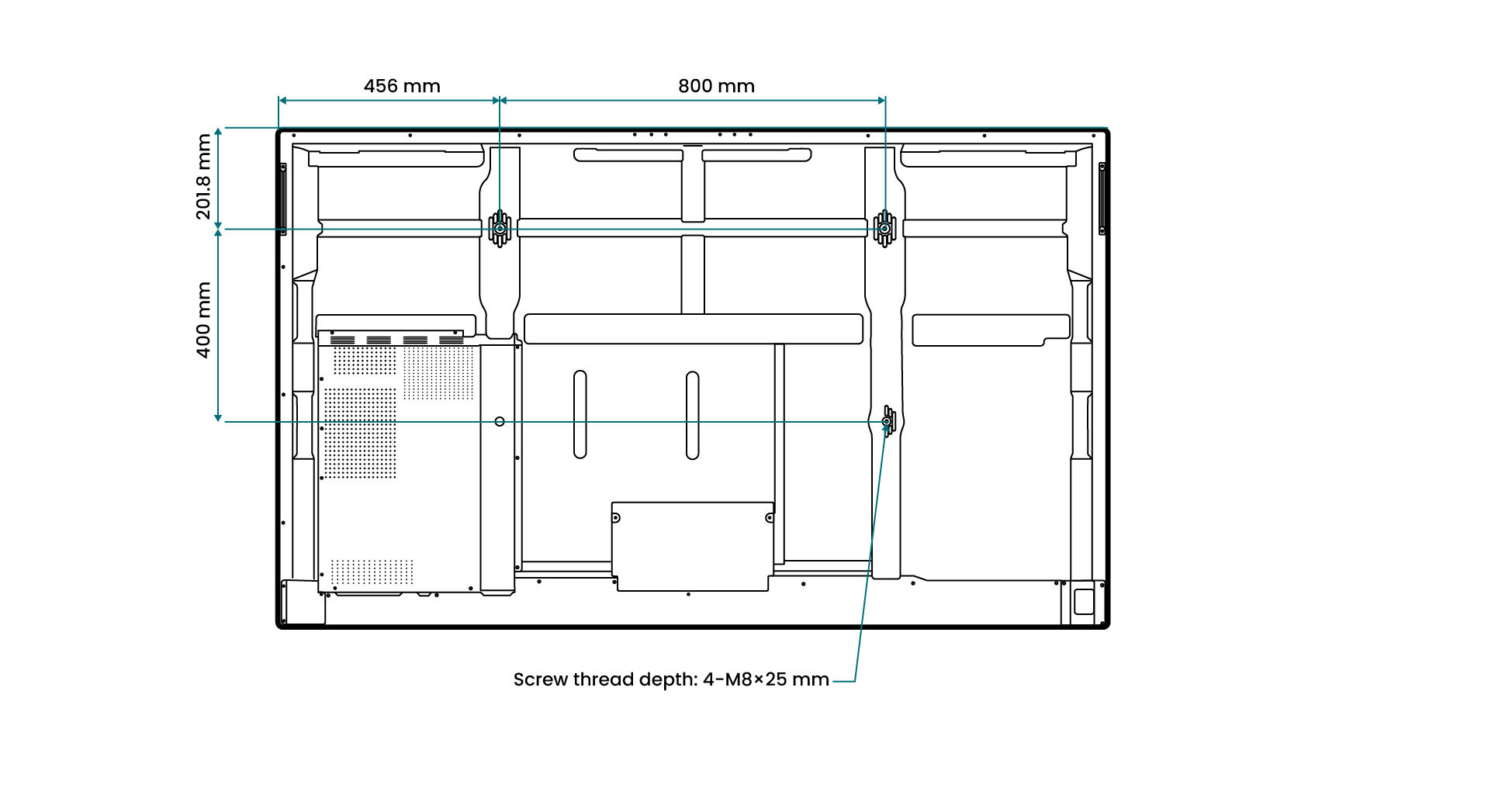

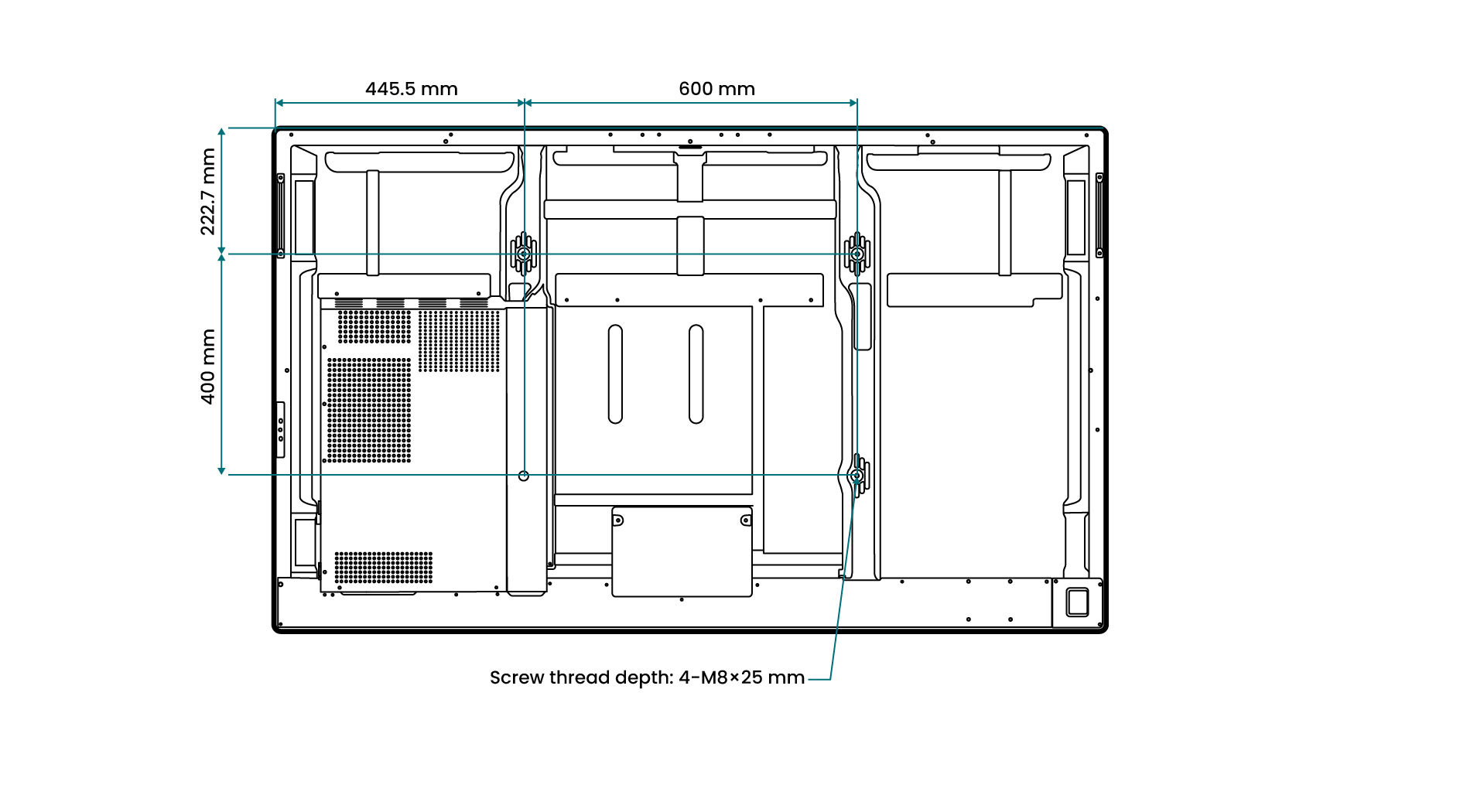

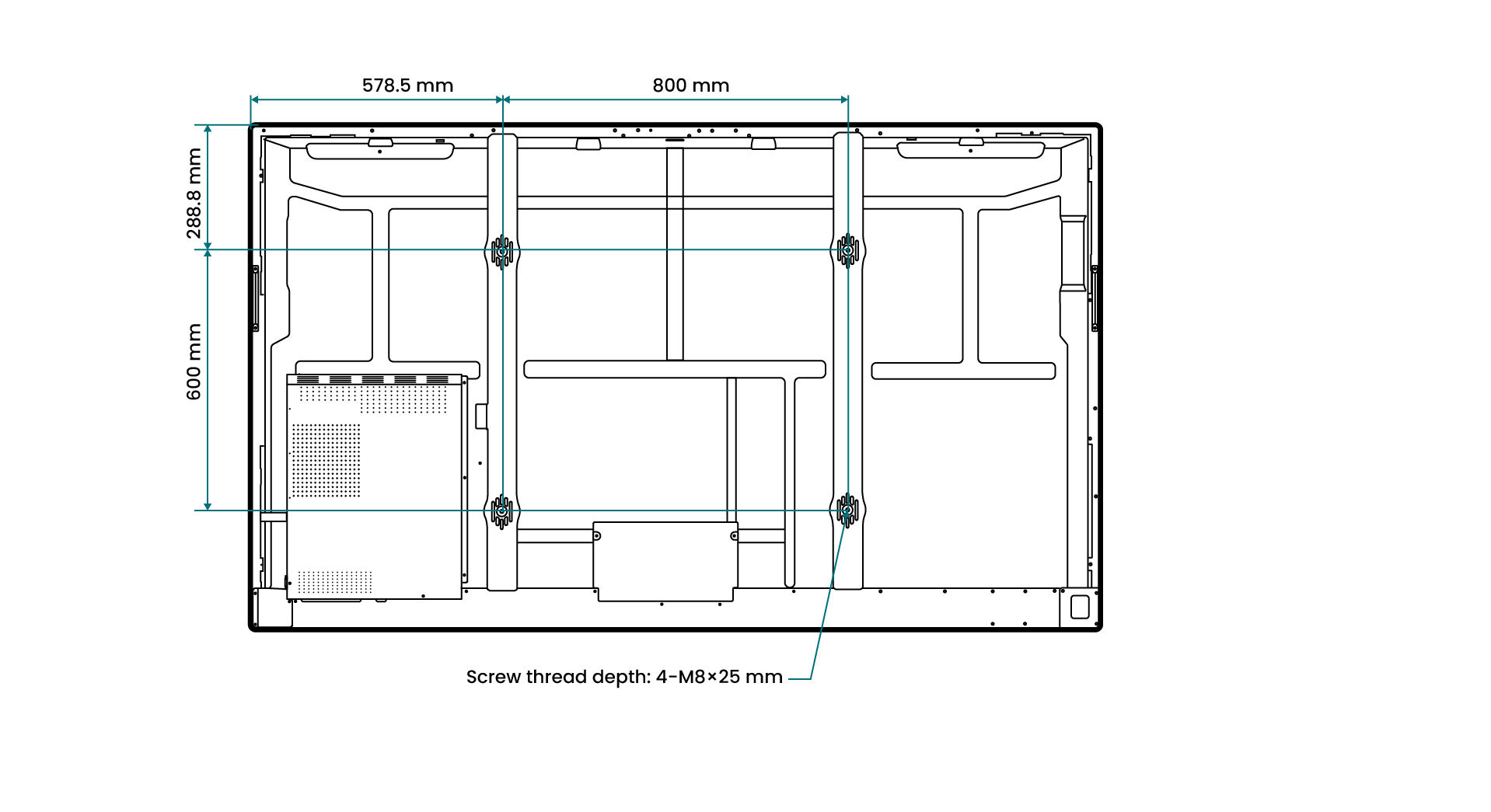

Dimensions
RE6505A
RE7505A
RE8605A
Package contents
Verify all the contents after opening the package. If any item is missing or damaged, please contact your dealer immediately.
Note
- Package contents and the picture shown here may vary by region. Purchase these items separately if they are not included in the package.
- The type and quantity of power cord may differ depending on the region of purchase.
Interactive display
Touch pen (without NFC tag) x2
Power cord
Touch USB cable
HDMI cable
Wall mount with screws
Remote control
User documents
Important
- Ensure that there are no accessories left inside the box before discarding the packaging.
- Do not leave plastic bags within reach of young children or babies.
- Dispose of packaging materials wisely. Consider recycling the cardboard carton or storing the package for future transport of the display.
Components

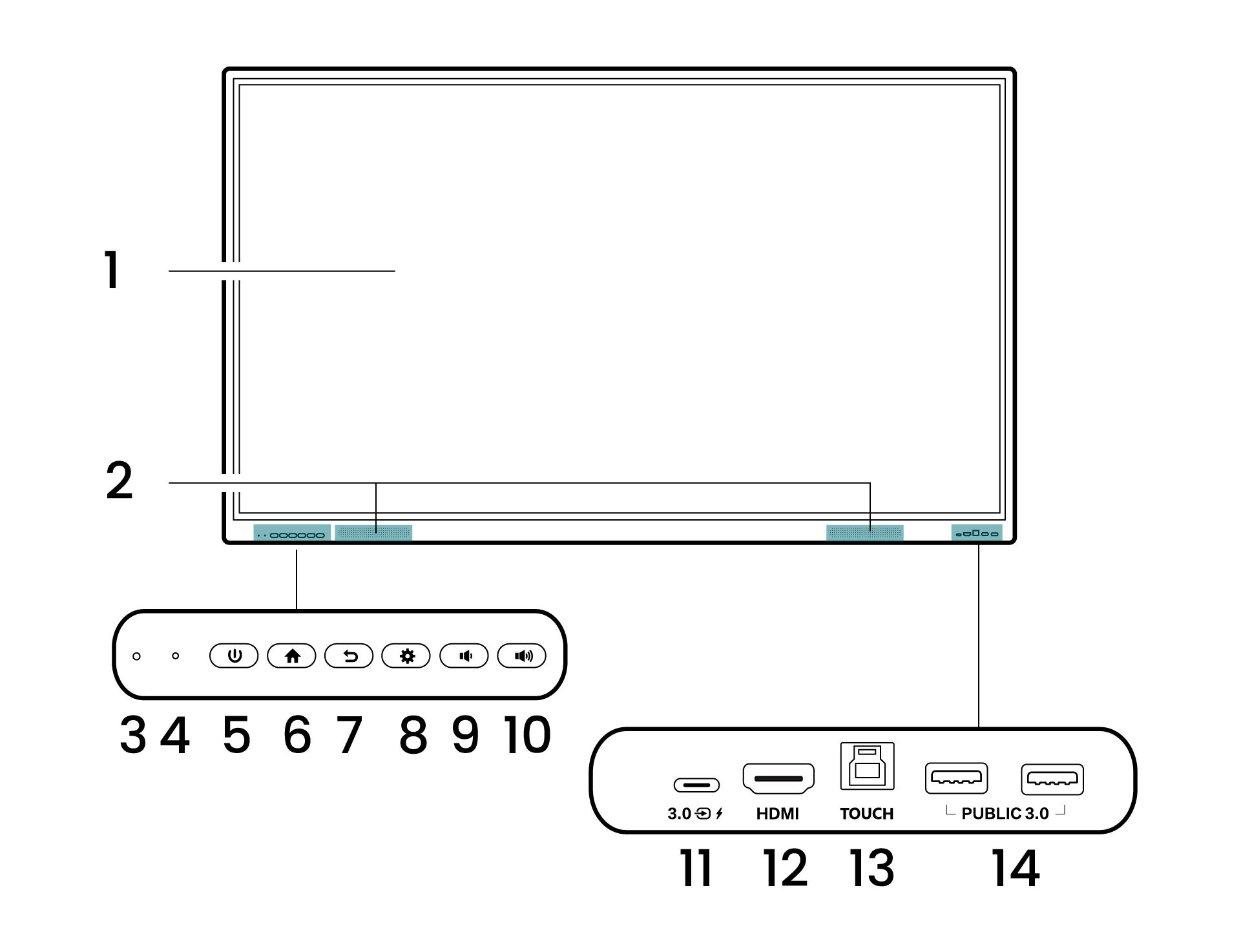

Front panel
Component
Component
1. Touchscreen
8. Settings button
2. Speaker
9. Volume down button
3. IR sensor
10. Volume up button
4. Ambient light sensor
11. USB 3.0 Type-C port (PD 65 W)1
5. Power button
12. HDMI in port
6. Home button
13. Touch USB 2.0 Type-B port
7. Back button
14. USB 3.0 Type-A ports2
Note
1 The multi-purpose USB-C port can be used for data, video, and audio transmission, touchback, and 65-watt charging.
2 The USB 3.0 Type-A ports function as USB passthrough ports. When a laptop is connected to the display as an input source, users can use these as extra data ports for their laptop.
- Regularly clean the input/output ports to prevent dust accumulation.

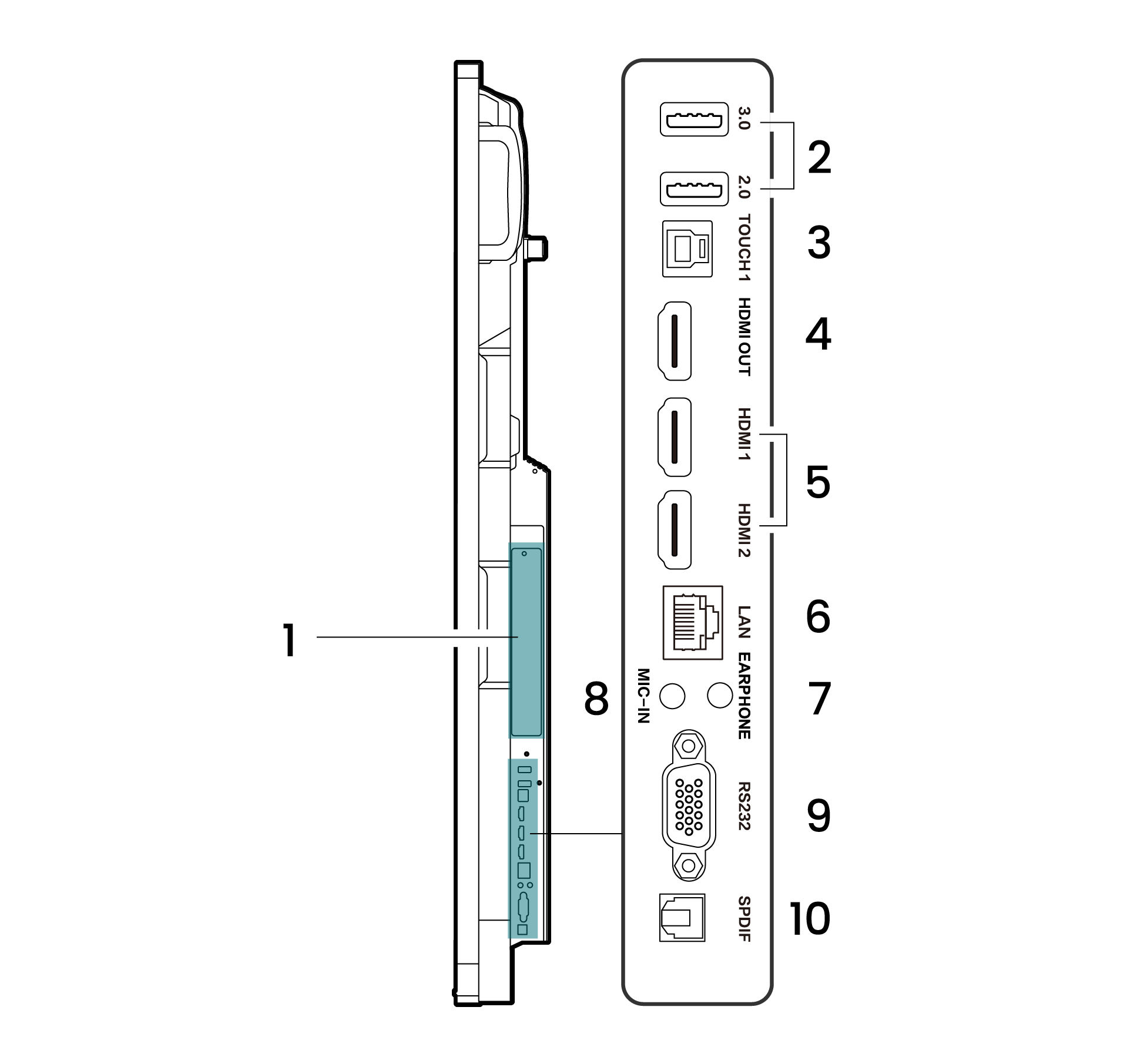

Right panel
Component
Component
1. OPS slot with cover
6. Gigabit Ethernet port3
2. USB 3.0 & USB 2.0 Type-A ports1
7. 3.5 mm audio out jack4
3. Touch USB 2.0 Type-B port 1
8. 3.5 mm audio in jack
4. HDMI out port
9. RS232 port
5. HDMI in ports2
10. S/PDIF port
Note
1 Unscrew the USB cover to access the USB slots for the wireless USB adapter.
2 The HDMI1 port supports HDMI ARC. For details, see Output.
3 The Gigabit Ethernet ports support data transfer speeds of 10/100/1000 Mbps.
4 The 3.5 mm audio out jack does not support audio input, including microphone input from headset devices.
- Regularly clean the input/output ports to prevent dust accumulation.

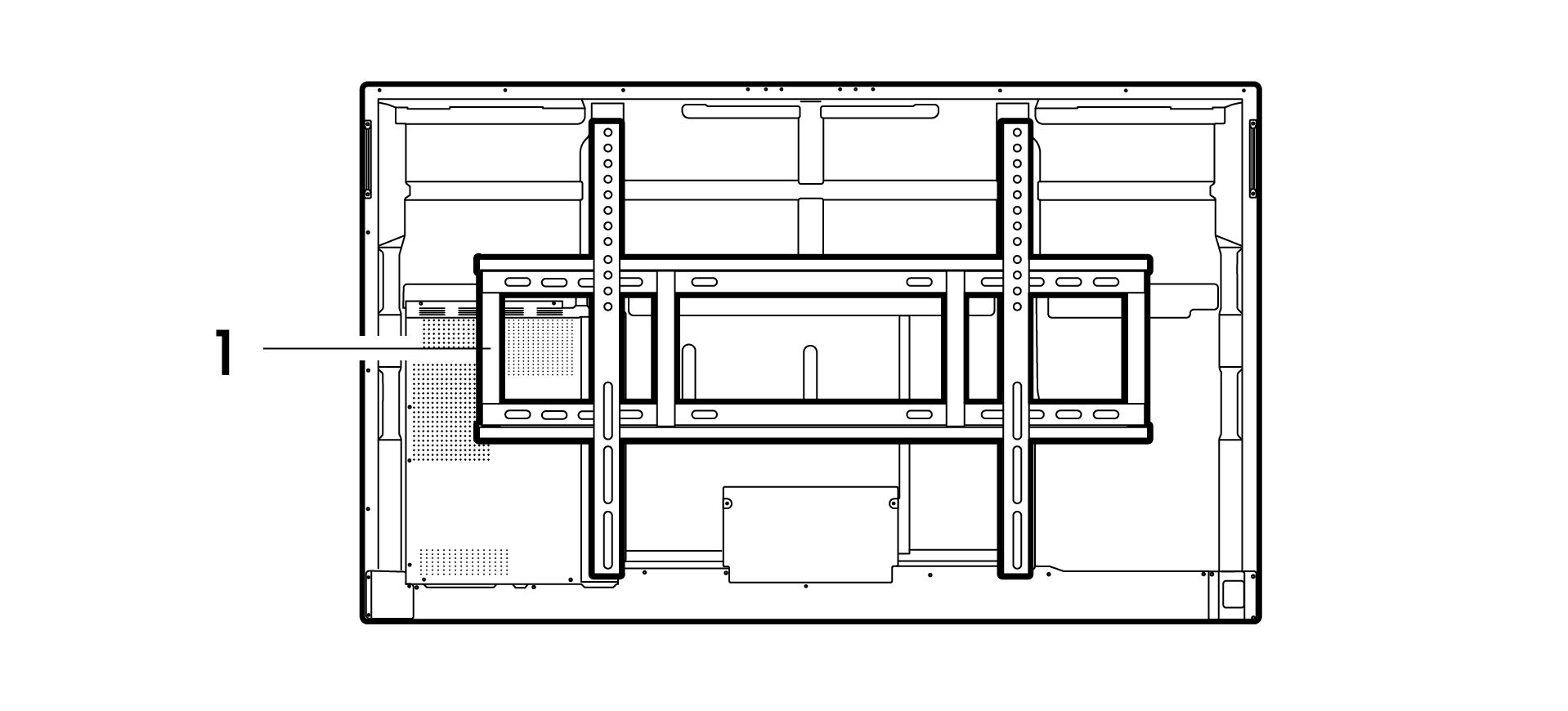

Rear panel
Component
1. Wall mount (pre-installed)

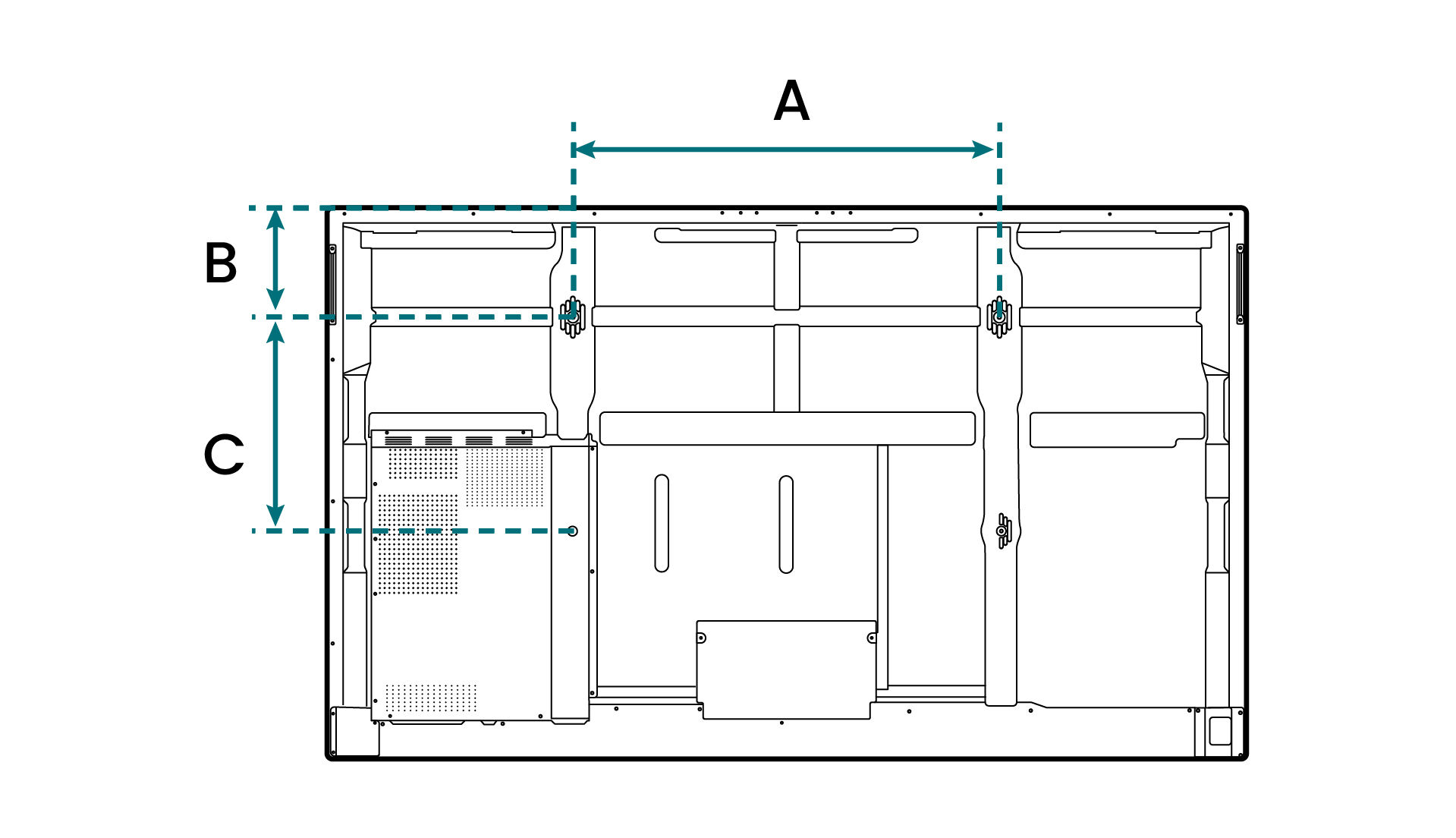

Vesa specifications
Screw size: M8 × 25L
Dimension
65"
75"
86"
A
600 mm
800 mm
800 mm
B
222.7 mm
201.8 mm
288.8 mm
C
400 mm
400 mm
600 mm
Installation requirements
Category
Item
Environment
- Room temperature: 0 to 40˚C (32 to 104˚F)
- Non-condensing relative humidity: 20 to 80%
- Flat, anti-static surface with no exposure to direct sunlight, liquids, and chemicals
Hardware and peripherals
Wireless USB adapter and/or Ethernet cable
Tools
- Scissors
- Phillips screwdriver
- Padding
- Anti-static wrist strap
Setting up the display
- Place the display in an environment that meets the requirements.
For details, see Installation requirements. - Add the display to DMS.
For details, see Adding the display to DMS. - Unbox the display.
For details, see Unboxing. - Mount the display.
For details, see Mounting. - Install any additional accessories and peripherals.
For details, see the following topics:
- Adapters
- External PCs - Connect the power cord and all applicable cables.
- Power on the display.
For details, see Powering on the display. - Set up BenQ Launcher.
For details, see Setting up BenQ Launcher. - Bind the display to AMS.
For details, see Binding the display to AMS.
