LW830ST 4000 ANSI Lumen WXGA Laser Simulation Projector
- 0.5 short throw ratio for large image from short distance.
- One-click preset configurations to prepare multi-projectors for blending.
- IP6X sealed engine with optional filter for optimal dust resistance and protection.
- Supports firmware updates via LAN to keep all devices up to date without physical access.
- Laser high visual 4000 ANSI lumen brightness
LW830ST 4000 ANSI Lumen WXGA Laser Simulation Projector
- 0.5 short throw ratio for large image from short distance.
- One-click preset configurations to prepare multi-projectors for blending.
- IP6X sealed engine with optional filter for optimal dust resistance and protection.
The requested qty is not available
The requested qty exceeds the maximum qty allowed in shopping cart
Product that you are trying to add is not available.
Immersive Entertainment
LW830ST 4000 ANSI Lumen WXGA Laser Projector
Blending Ready Mode
* Preset configuration. Automatic edge blending software not included. Additional software or hardware solutions are required to complete edge blending.
360° Installation
Colour Mode
BenQ WBA
1280x800
Short Throw
Max Screen
Dustproofing
Optional Filter
LAN Firmware Update
DMS Software IT Takes Control
BenQ Immersive Entertainment Projector Series
Key Spec |
LW600ST+ |
LH600ST+ |
LH835ST |
LW830ST |
LH830ST |
LK830ST |
Key Spec Brightness (ANSI) | LW600ST+ 3200lm | LH600ST+ 3000lm | LH835ST 4000lm | LW830ST 4000lm | LH830ST 4000lm | LK830ST 4000lm |
Key Spec Resolution | LW600ST+ WXGA | LH600ST+ 1080P (1920x1080) | LH835ST 1080P (1920x1080) | LW830ST WXGA | LH830ST 1080P (1920x1080) | LK830ST 4K UHD |
Key Spec Throw Ratio | LW600ST+ TR 0.72 - 0.87 | LH600ST+ TR 0.69 - 0.83 | LH835ST TR 0.69 - 0.83 | LW830ST TR 0.521 | LH830ST TR 0.496 | LK830ST TR 0.496 |
Key Spec Light Source | LW600ST+ LED | LH600ST+ LED | LH835ST Laser | LW830ST Laser | LH830ST Laser | LK830ST Laser |
Key Spec Lens Control | LW600ST+ Manual | LH600ST+ Manual | LH835ST Motorized | LW830ST Manual | LH830ST Manual | LK830ST Manual |
Key Spec Keystone | LW600ST+ 2D Keystone +/- 30 Degrees | LH600ST+ 2D Keystone +/- 30 Degrees | LH835ST 2D Keystone +/- 30 Degrees | LW830ST 2D Keystone +/- 30 Degrees | LH830ST 2D Keystone +/- 30 Degrees | LK830ST 2D Keystone +/- 30 Degrees |
Key Spec Offset | LW600ST+ 100% | LH600ST+ 100% | LH835ST 102.50% | LW830ST 112% | LH830ST 116% | LK830ST 114% |
Key Spec Lightsource Life | LW600ST+ 20,000 hrs | LH600ST+ 20,000 hrs | LH835ST 20,000 hrs | LW830ST 20,000 hrs | LH830ST 20,000 hrs | LK830ST 20,000 hrs |
Key Spec Dimensions (mm) | LW600ST+ 304 x 107 x 221 mm | LH600ST+ 304 x 107 x 221 mm | LH835ST 304 x 112 x 235 mm | LW830ST 279 x 121 x 229 mm | LH830ST 279 x 121 x 229 mm | LK830ST 279 x 121 x 229 mm |
Key Spec Weight(kg) | LW600ST+ 2.9 Kg | LH600ST+ 2.9 Kg | LH835ST 3.3 Kg | LW830ST 3.4 Kg | LH830ST 3.4 Kg | LK830ST 3.6 Kg |
Installer Ready
Optimised for Multi-Projector Projects from Fast Setup to Long Term Performance
Blending Ready Mode
One-click preset in the OSD that applies key settings to prepare images for multi-projector blending.
* Preset configuration. Automatic edge blending software not included. Additional software or hardware is required to complete edge blending.
Brilliant Visuals with Stable Colour and Performance
The LW830ST delivers brilliant image clarity and stable performance across every detail—from vivid Rec.709 colour and high contrast to 4000-lumen (ANSI) brightness and 20,000-hour laser life.
sRGB mode
Simulation mode
Detail Visibility
Contrast Ratio
Wide Colour
High Brightness
Short Throw
Long-lasting Laser
BenQ WBA for Seamless Multi-Projector White Calibration
BenQ’s factory white balance adjustment (WBA) reduce variables between images projected from different projectors, significantly reducing manual calibration effort. It can save up to a full day of setup time in large-scale installations while ensuring seamless multi-projector alignment for edge blending.
Full flexibility for ceilings, walls and floors
360° and Portrait Projection for Full Installation Freedom
360° Installation
Portrait Projection
Image Adjustment

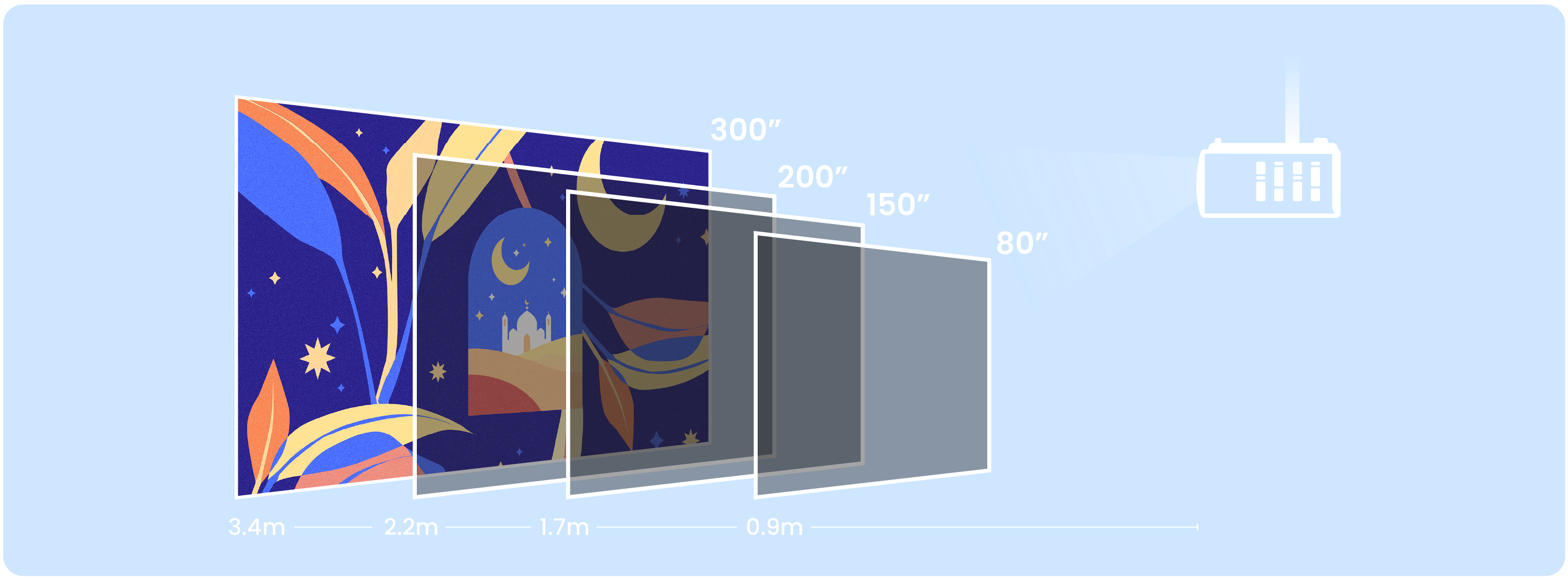

Up to 300-Inch Display
0.5 short throw ratio for large image from a short distance in limited spaces.
Ready for Dusty Venues
1
IP6X Sealed Optical Engine for Reliable Operation
Designed with a sealed optical engine tested for IP6X protection, helping maintain consistent image performance during long-term use.
2
Optional Filter for Extra Protection
Provides added protection in dusty environments and helps extend projector life.
3
Auto Reset Mechanism with Built-in Timer
Automatically tracks filter usage and resets the timer when a new filter is installed, without any manual setup.
IT takes control
Streamlined Device Management
Remote Monitoring and Diagnostics
Easily track projector status and diagnose issues remotely, eliminating frequent on-site visits.
Firmware Management Over Network
Easily update all projectors via LAN to keep firmware current without physical access.
Reliable Performance, Less Maintenance
Ensure long-term stability, freeing SI teams to focus on creative installations rather than routine upkeep.
