You might be surprised to learn that your Steam Deck is not limited to its native display at 800P. By adopting the proper system setup and dock, you can output to a larger display and enjoy stunning visuals up to 1080p 360Hz or 4K 120Hz!
While the Steam Deck is designed for on-the-go gaming, its ability to connect to external displays opens up a world of possibilities. Many gamers dream of enjoying their favorite Steam titles on a large screen, but did you know that your Steam Deck can do more than just mirror its 800p display?
That's right, with the proper setup your Steam Deck can output resolutions far beyond 800p, reaching an impressive 4K resolution or at a smooth high refresh rate like 90Hz, or evan 120Hz! However, if you're simply mirroring your screen in Game Mode without adjusting certain settings, you're not tapping into your device's full potential.
Wondering if setting up your Steam Deck on the big screen is worth it? Here’s why it is:
1. Enhanced Display Quality: Steam Deck's native screen supports 800P, but connecting to an external display offers larger, sharper visuals (1080P, 2K, or 4K).
2.Improved Visual Features: Steam Deck supports advanced display features like VRR and HDR but cannot fully render them on the built-in display. An external display with these capabilities unlocks its full potential, enhancing your gaming experience.
3.Longer Play Sessions: Handheld mode limits Steam Deck to just 1-2 hours of gameplay, often requiring a power adapter that hinders the experience. By connecting to a power source and external display, you can enjoy hours of uninterrupted, comfortable gaming.
4.Desktop PC Functionality: In desktop mode, Steam Deck functions as a full PC. Connecting to an external display transforms it into an efficient workstation.
So, why can't we just plug in and play at 4K or 120Hz right away? The answer lies in how Game Mode operates. Game Mode is optimized for the Steam Deck's built-in display, which caps out at 800p. This optimization ensures great performance on the go but inadvertently limits output to external displays.
To maximize your Steam Deck's true potential, we'll need to adjust some settings in either Game Mode or Desktop Mode. This process allows you to personalize your display experience, fine-tuning aspects such as resolution, refresh rate, HDR, and even activating advanced features like Variable Refresh Rate (VRR).

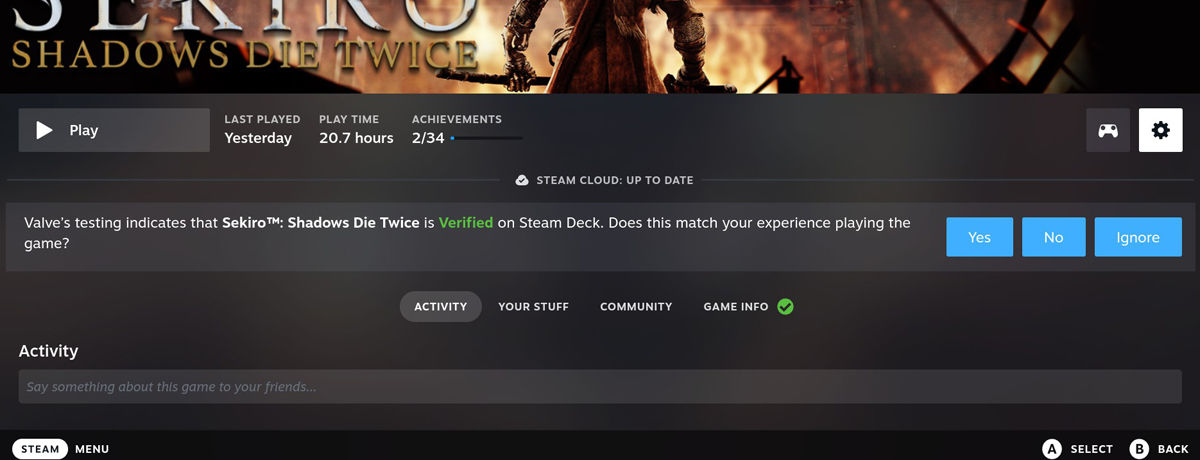

1.Enter the Page of a Specific Game and Click the Gear Icon

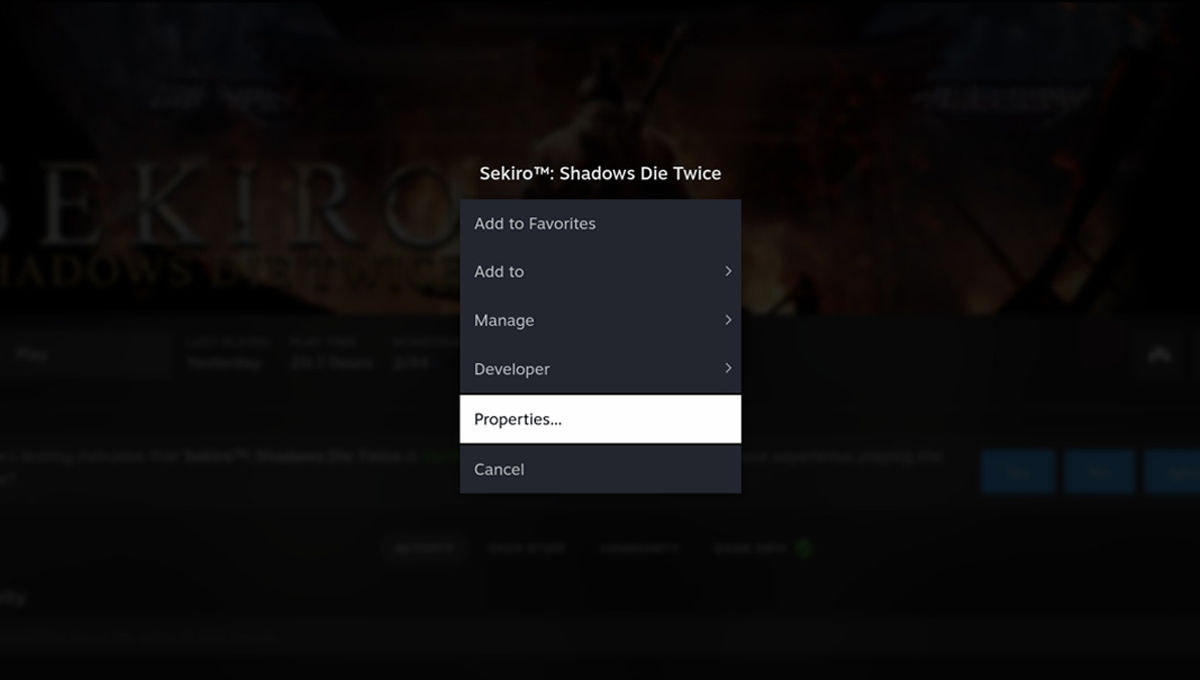

2.Select “Properties”

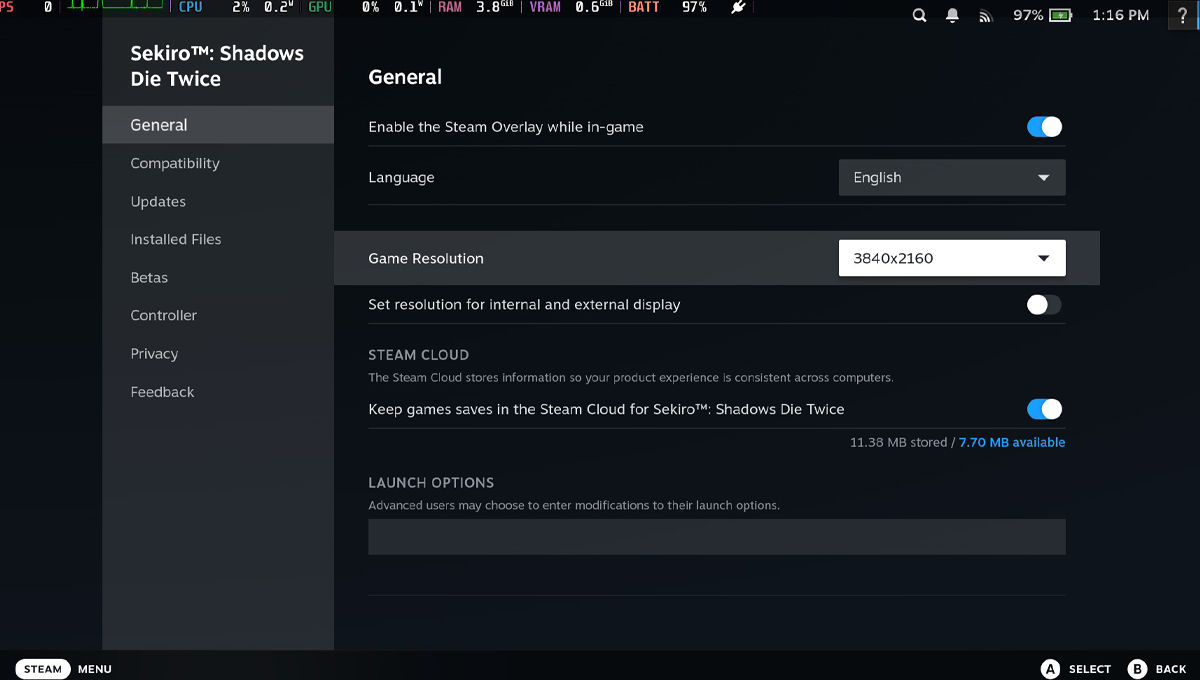

3.Select a Game Resolution in “General” Subsection.
1.Enter Desktop Mode:
◼️ Press and hold the power button
◼️ Select "Switch to Desktop" from the power menu
2.Adjust Display Settings:

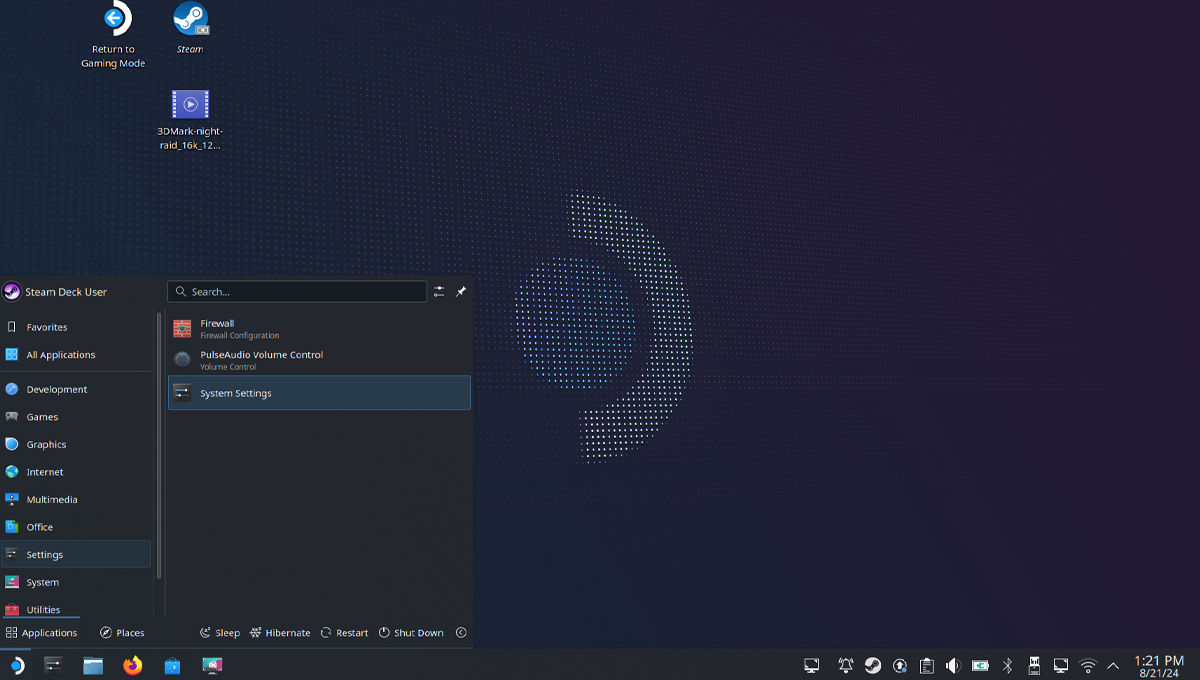

◼️ Click the Steam Deck icon in the bottom-left corner and Navigate to “System Settings”

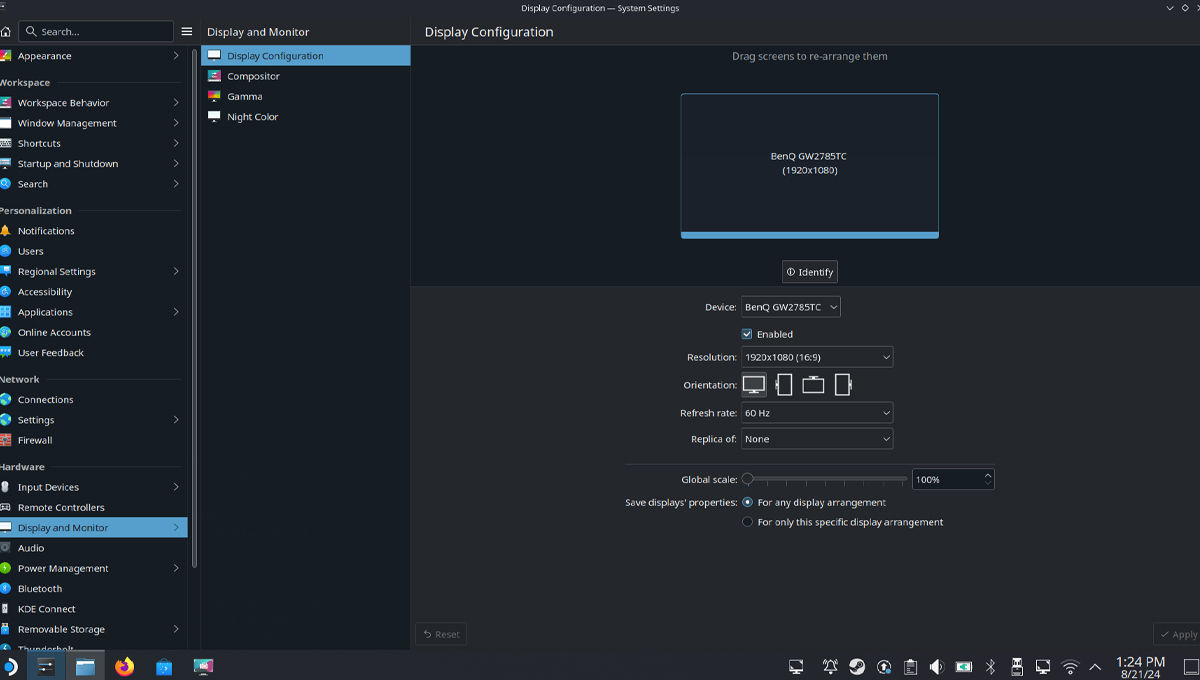

◼️ Select "Display and Monitor", “Display Configuration”, and click on your external display.

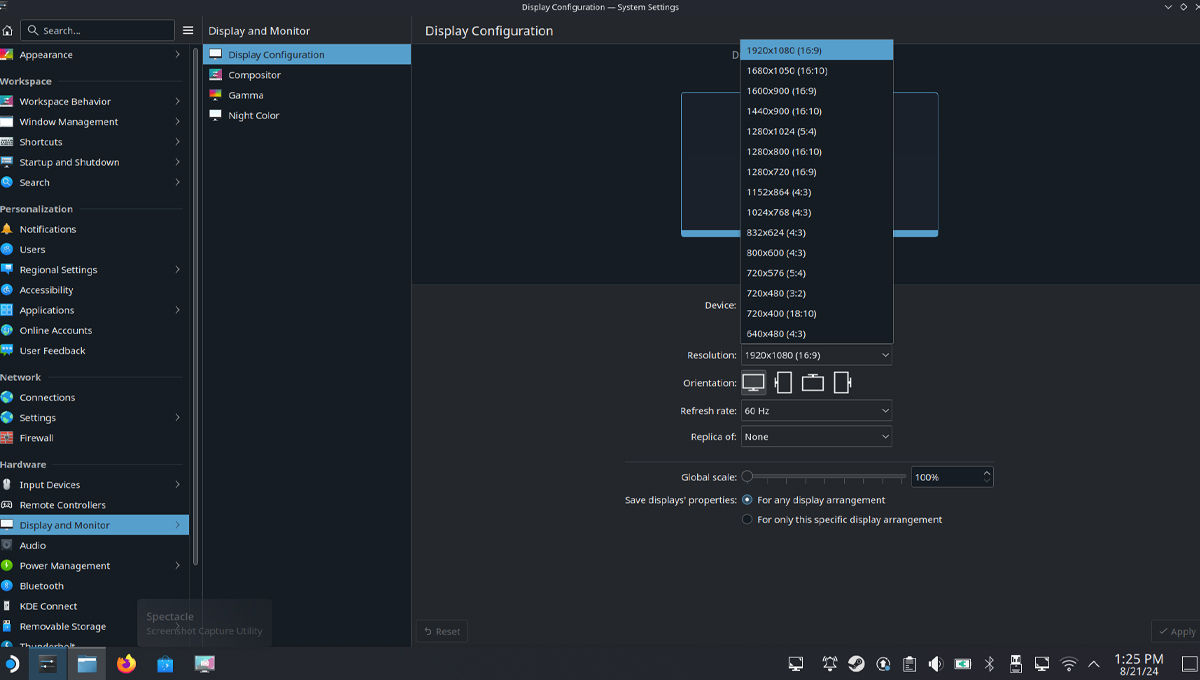

◼️ Choose the proper resolution & refresh rate that fit your settings & scenarios.
◼️ Click apply and hit the keep button in the pop-up window to keep your display configuration.
3.Launch Your Game:
◼️ Open Steam in Desktop Mode
◼️ Find your game and hit play
◼️ Enjoy the stunning visuals!
Remember, you may need to adjust in-game settings to balance performance and visual quality, especially for demanding titles.

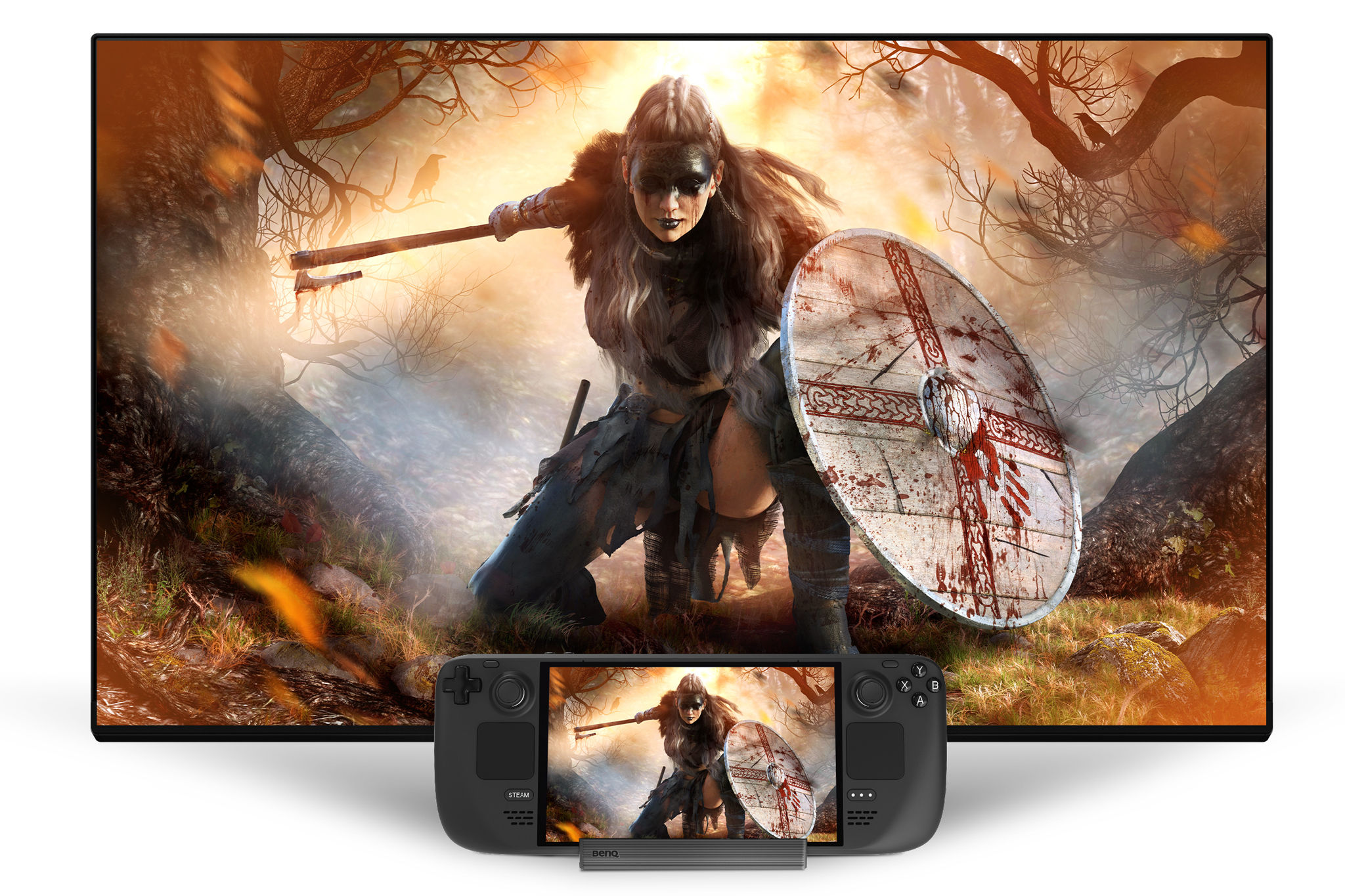

While the Steam Deck itself is capable of 4K 120Hz output, you need the right hardware to make it happen. This is where the GR10 dock comes into play, designed specifically to unleash your Steam Deck's full potential.
Why Choose GR10?
1. Uncompromised Performance for Every Gamer Style:Powered by USB4 technology, GR10 delivers a massive 40Gbps bandwidth, supporting both 1080p 360Hz for competitive edge and 4K 120Hz for stunning visuals. Whether you're gaming on Steam Deck or other devices, GR10 ensures maximum video throughput for any game type.
2.Future-Proof Connectivity: The 2.5G Ethernet port provides 2.5 times the bandwidth of the official dock, perfect for downloading massive game files while you play on the big screen.
3.Expand Your Storage: With 10Gbps USB ports, you can connect high-speed external SSDs to expand your game library without compromising on load times.
4.Tested and Proven: GR10 has undergone rigorous compatibility testing with the Steam Deck, Steam Deck OLED, and ROG Ally, ensuring it can fully utilize the HDMI 2.1 capabilities for that crisp 4K 120Hz output.
By following this guide and pairing your Steam Deck with the GR10 dock, you're not just connecting your device to a bigger screen, you're elevating your entire gaming experience. The ability to switch between handheld and high-fidelity docked play makes the Steam Deck a true all-in-one gaming solution.
Remember, while not every game could run at high resolution with a high refresh rate at the same time, having this capability means you're always getting the best possible visual experience, whether that's super-smooth 1080p gameplay or stunning 4K visuals.
Are you ready to see what your Steam Deck can really do? Grab your GR10, hook up your external device, and prepare to be amazed. Your games have never looked this good. Game on!
Enjoy stutter-free 120Hz gaming on your Steam Deck with GR10. Play in 4K120Hz or 8K60Hz with HDMI 2.1 and USB4. Game on!
