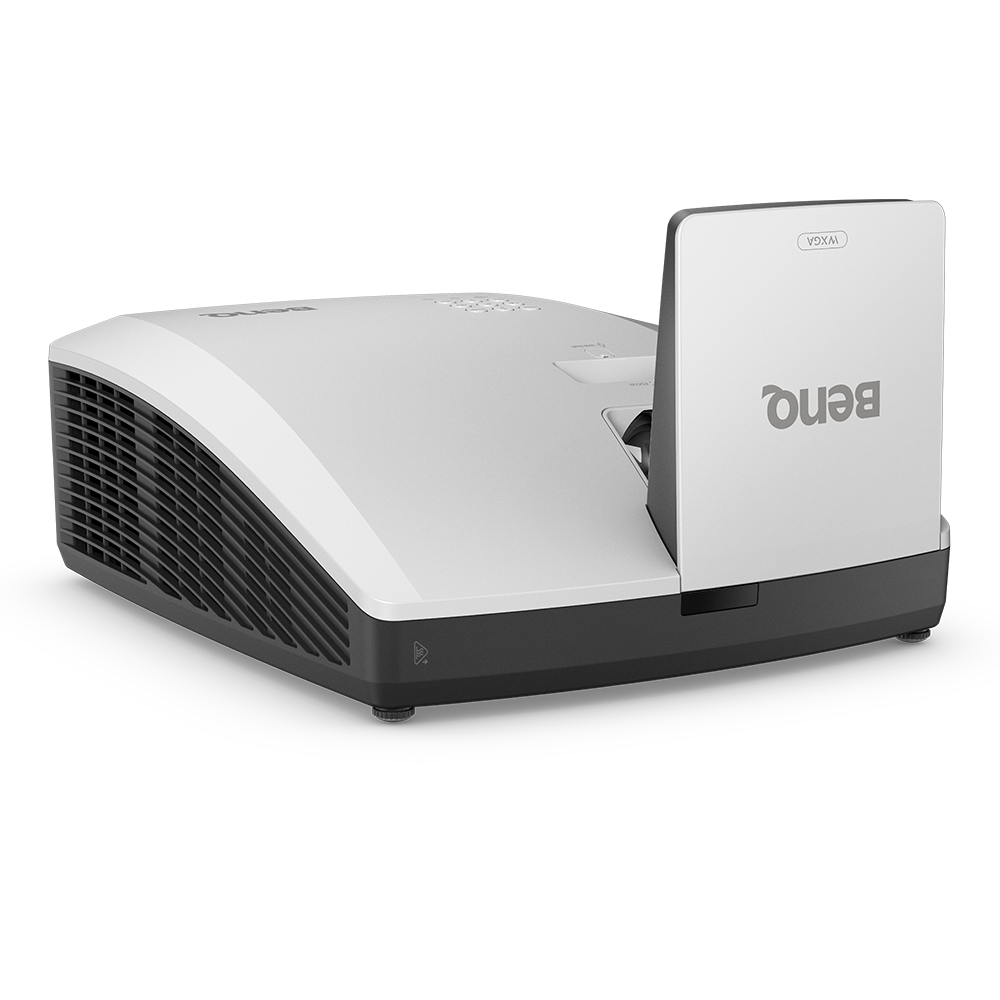

LW855UST 3500AL WXGA Laser Ultra Short Throw Interactive Projector
Paving the Way for Cutting-Edge Classroom Interaction
- T/R=0.35 ultra short throw ratio
- Up to 38,000-hour laser light source lifespan (under Eco mode)
- BenQ Exclusive Infographic/Vivid Mode
- PointWrite Interactive Solution Compatibility
- IP6X dustproof sealed engine mechanism reduces maintenance costs
LW855UST 3500AL WXGA Laser Ultra Short Throw Interactive Projector
Paving the Way for Cutting-Edge Classroom Interaction
- T/R=0.35 ultra short throw ratio
- Up to 38,000-hour laser light source lifespan (under Eco mode)
- BenQ Exclusive Infographic/Vivid Mode
The requested qty is not available
The requested qty exceeds the maximum qty allowed in shopping cart
Product that you are trying to add is not available.
All Specifications
Display
Brightness (ANSI lumens)
3500
Resolution
WXGA (1280x800)
Native Aspect Ratio
16:10
Contrast Ratio (FOFO)
3,000,000:1
Display Color
30-bit (1.07 billion colors)
Light Source
Laser
Light Source Life
a. Normal 20000 hrs, b. ECO 38000 hrs, c. Dynamic Dimming 60000 hrs
Throw Ratio
0.35
Zoom Ratio
Fixed
Lens
F/# = 2.5, f = 5.1 mm
Projection Offset (Full-Height)
121%
Keystone Adjustment
2D, Vertical ± 15 degrees; Horizontal ± 15 degrees
Lens Shift Vertical
Vertical: ±2%
Picture Modes
3D, Bright, Infographic, Presentation, sRGB, User 1, User 2, Vivid
Resolution Support
VGA (640 x 480) to 4K UHD (3840 x 2160)
Horizontal Frequency
15K~135KHz
Vertical Scan Rate
23~120Hz
PC in (D-sub 15pin)
(x1), PC in-1 (shared with component video)
Monitor out (D-sub 15pin)
(x1)
HDMI in
(x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
LAN (RJ45)
(x1)
USB Type A
(x1), USB Type A-1 (2.0/Power Supply1.5A)
USB Type Mini B
(x1), USB Type Mini B-1(PointWrite), USB Type Mini B-1(service)
RS232 in (DB-9pin)
(x1)
Speaker
(x2), 10W
Audio in (3.5mm Mini Jack)
(x1)
Audio out (3.5mm Mini Jack)
(x1)
Microphone in (Mini Jack)
(x1)
Operating Temperature
0~40℃
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
170W
Stand-by Power Consumption
<0.5W
Network Stand-by Power Consumption
<2W
Acoustic Noise (Typ./Eco.)(dB)
34/32
Remote Control w/ Battery
RCS011
Power Cord (by region)
x1 (3.0M)
3D Glasses
DGD5, (Optional)
Quick Start Guide
(x1) 21L
Warranty Card (by region)
Yes
Wall Mount
WM04G4, (Standard)
Dimensions (WxHxD) (mm)
317.2 x 376.4 x 208
Net Weight (kg)
6.5
Projection System
DLP
Product Security Updates: LW855UST Guaranteed Product security updates until 31/12/2026
